DW-5058-1
(1/2" Drywall)
FEATURES

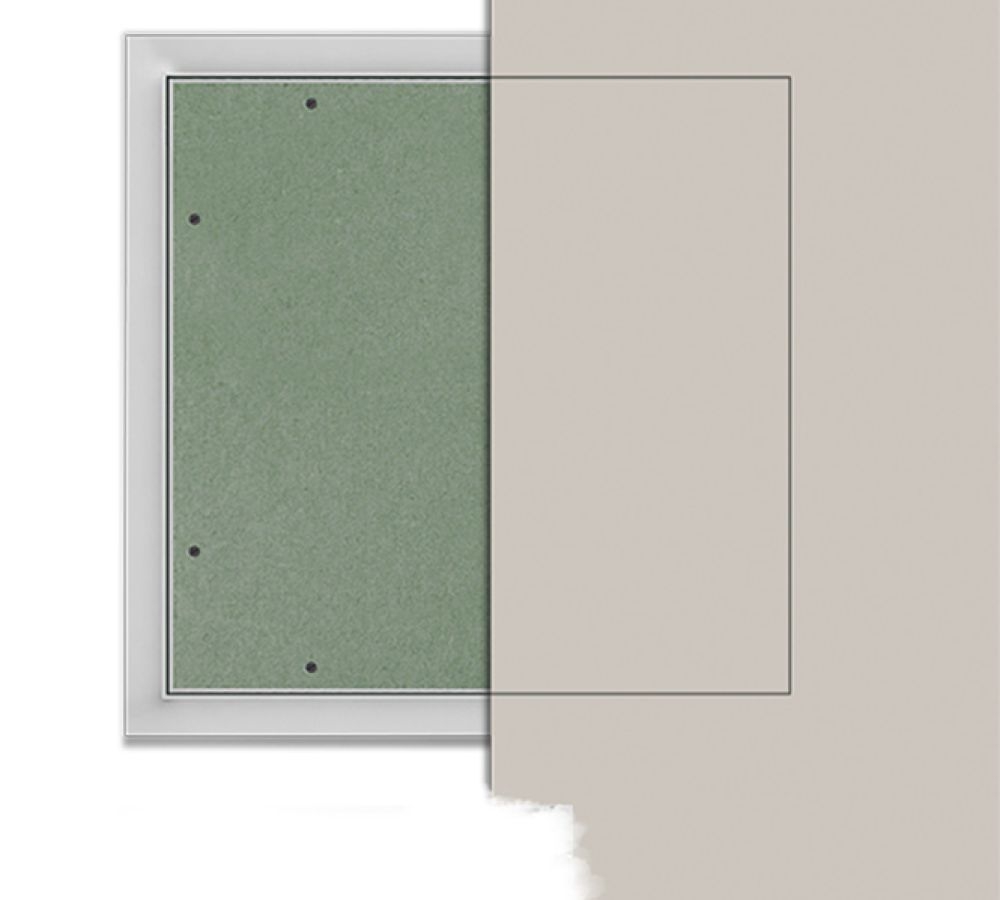

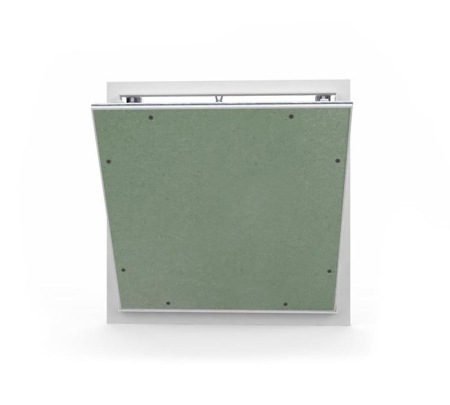

The Acudor DW-5058-1 is a recessed access door, designed to provide access in walls and ceilings. The DW-5058-1 will provide an
ADDITIONAL INFORMATION
Material: Aluminum extrusion with drywall fitted in door panel

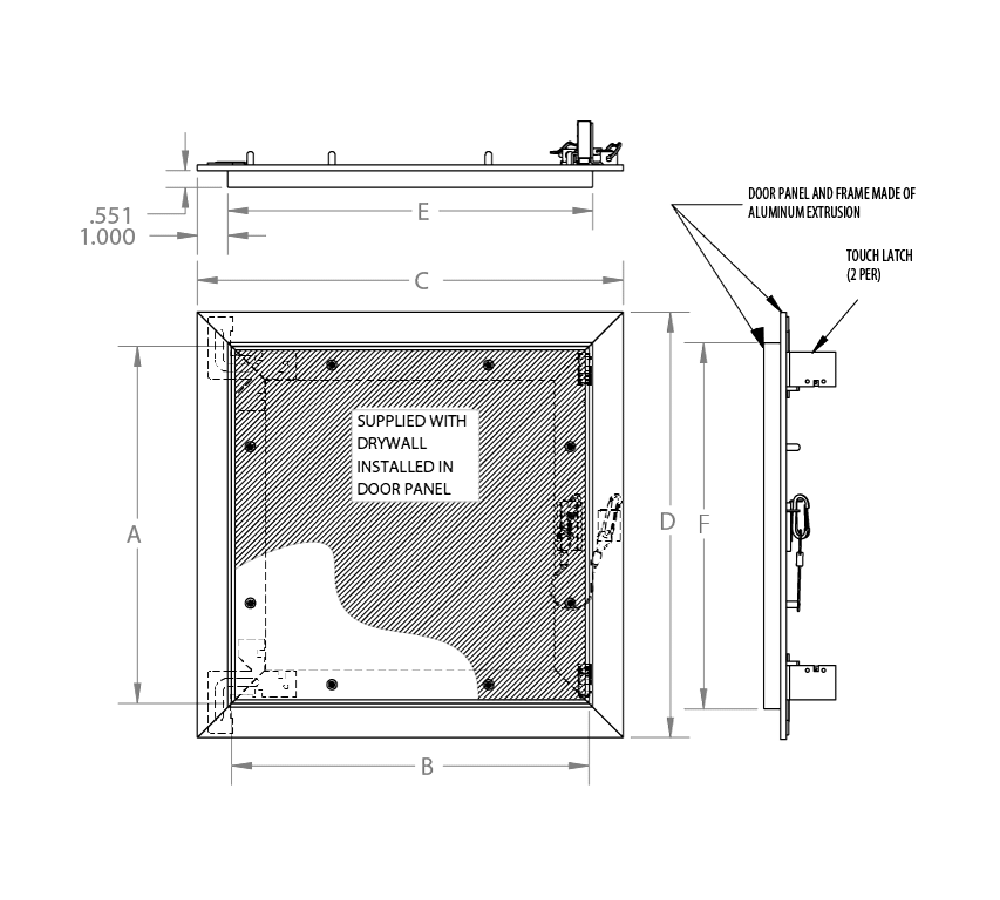

Door Frame: Aluminum extrusion 6063-T6 recessed to provide similar edge to drywall bead to allow for finishing of wall or ceiling surface.

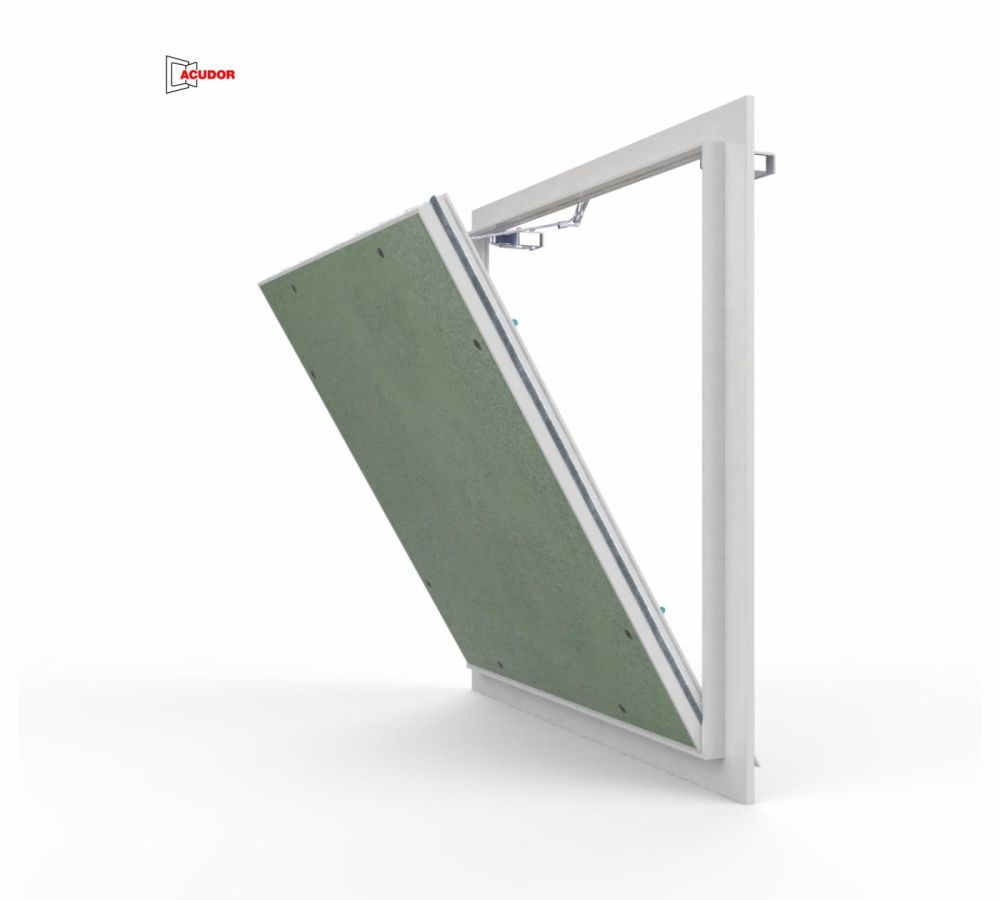

Hinge: Wing hinge allows door panel to open to 90 degrees, and also allows for door panel to be removed from frame. Safety chain installed on door & frame for safety.
Gasket: Dust seal gasket
Standard Latch: Concealed Touch Latches
Optional Locks/Latches: Slotted Screwdriver Cam Latch, allen head cam latch, spanner head cam latch, cylinder lock & key.
Finish: Powder Painted White
Last Modified: 2025-06-05
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | DW-5058-1 | 8 X 8 (203 X 203) |
---
|
|
|
| Special Order | DW-5058-1 | 12 X 12 (305 X 305) |
$159.00
|
|
|
| Special Order | DW-5058-1 | 16 X 16 (406 X 406) |
$174.00
|
|
|
| Special Order | DW-5058-1 | 18 X 18 (457 X 457) |
$184.00
|
|
|
| Special Order | DW-5058-1 | 24 X 24 (610 X 610) |
$240.00
|
|
|
| Special Order | DW-5058-1 | 24 X 36 (610 X 914) |
$317.00
|
|
