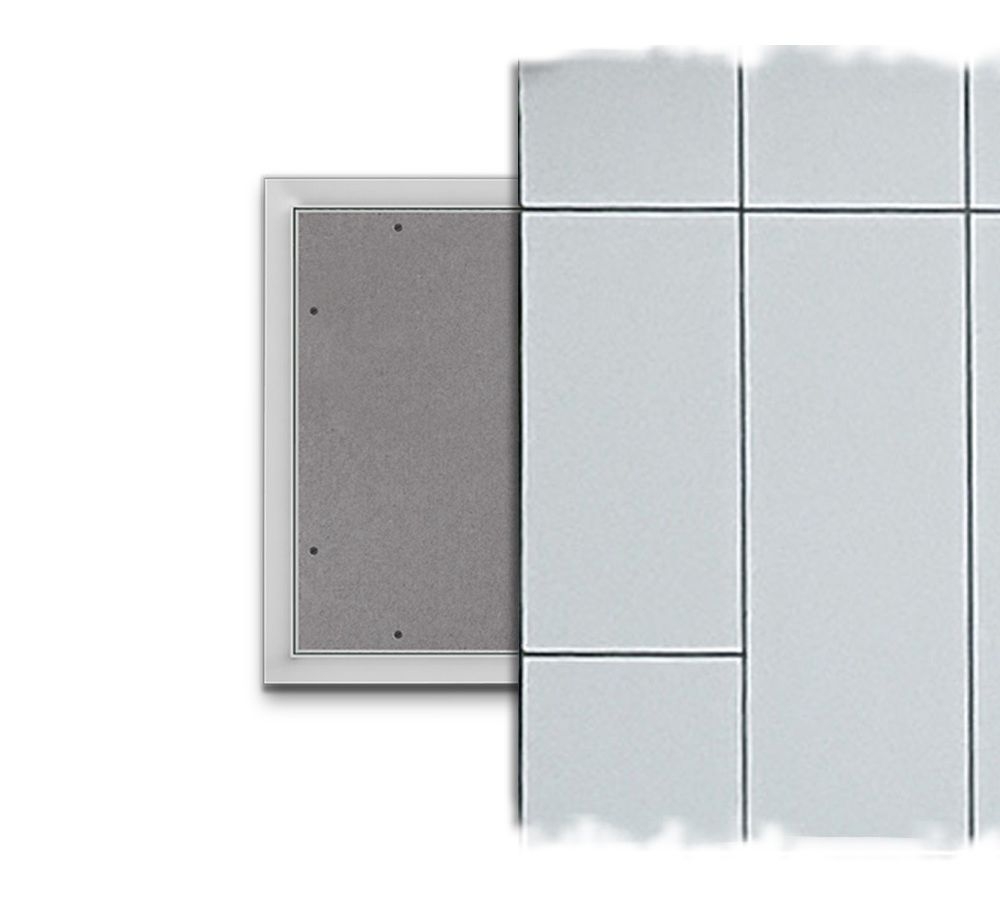

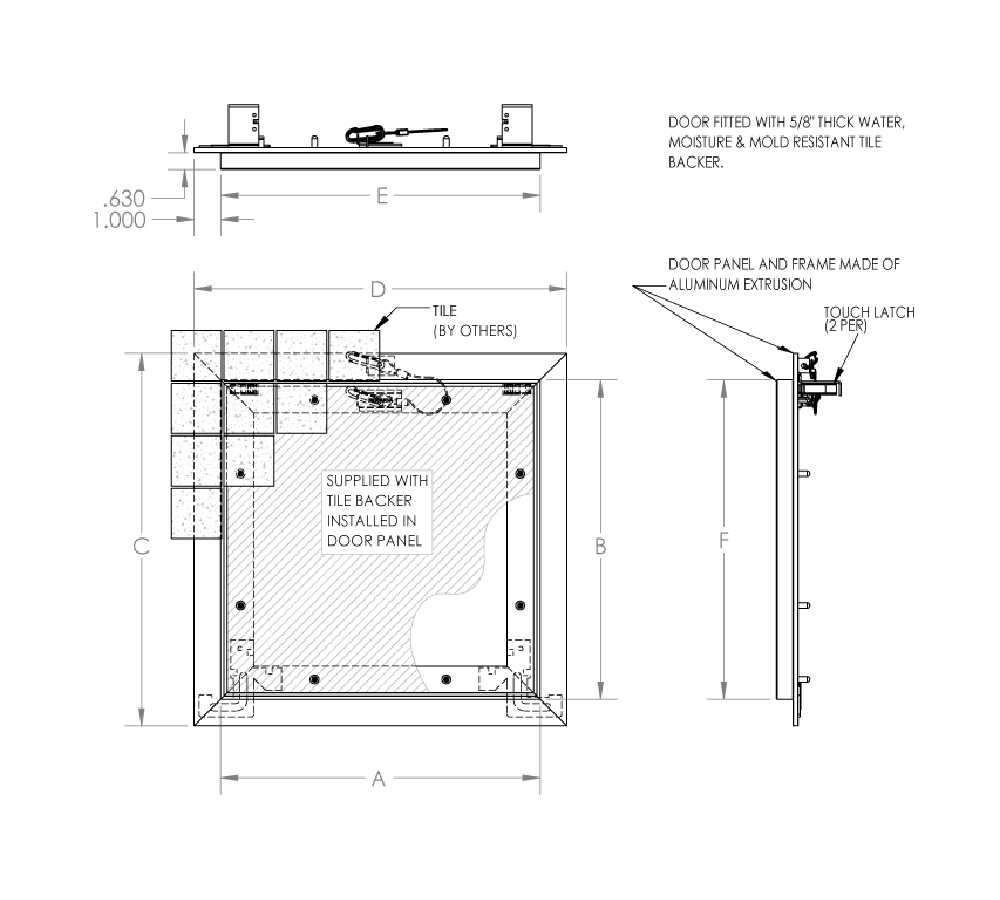

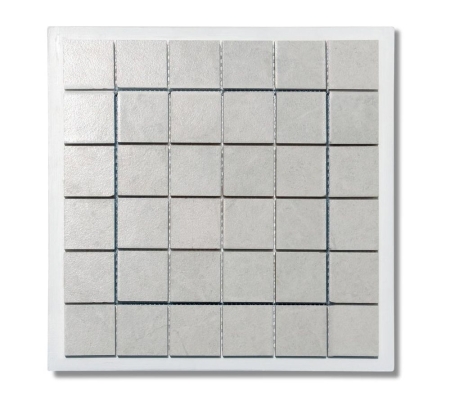

The Acudor DW-5058-TD is a recessed access door, Designed to provide access in tiled walls, while maintaining an invisible, architecturally pleasing appearance
Material: Aluminum extrusion with tile backer fitted in door panel
Door Frame: Aluminum extrusion 6063-T6 recessed to provide similar edge to drywall bead to allow for finishing of wall or ceiling surface.
Hinge: Wing hinge allows door panel to open to 90 degrees, and also allows for door panel to be removed from frame. Safety chain installed on door & frame for safety.
Gasket: Dust seal gasket
Standard Latch: Concealed Touch Latches
Optional Latches/Locks: Slotted Screwdriver Cam Latch, allen head cam latch, spanner head cam latch, cylinder lock & key.
Finish: Mill Finish
Last Modified: 2025-06-28
Share
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | DW-5058-TD | 8 X 8 (203 X 203) |
---
|
|
|
| Special Order | DW-5058-TD | 12 X 12 (305 X 305) |
---
|
|
|
| Special Order | DW-5058-TD | 16 X 16 (406 X 406) |
---
|
|
|
| Special Order | DW-5058-TD | 18 X 18 (457 X 457) |
---
|
|
|
| Special Order | DW-5058-TD | 24 X 24 (610 X 610) |
---
|
|
|
| Special Order | DW-5058-TD | 24 X 36 (610 X 914) |
---
|
|
