Benefits

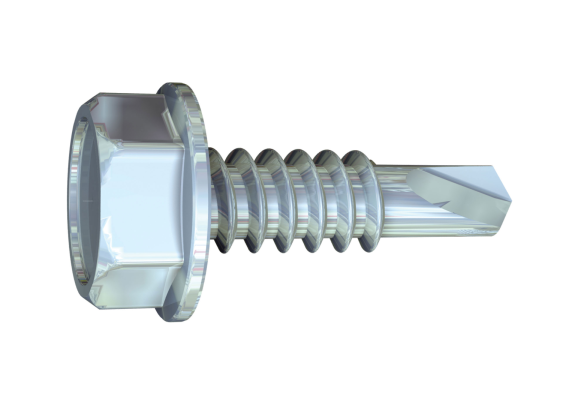

• Hex washer head design provides maximum torque and holding power in metal to metal framing applications.
• The hex washer head design provides a larger load bearing surface for better holding power.
• Grabber drill point hex washer head screws begin with the best available materials and conform to strict manufacturing requirements in thread forming. Extra sharp threads mean screws will drive faster and will hold better.
• Consistently formed extra sharp drill point starts and drills easily into heavy gauge metal framing.

Installation Guidelines

Use a standard screw gun with a depth-sensitive nose piece. Suggested screw gun specification for optimal performance RPM range of 0 to 2,500. Because of significantly higher torque output, care and caution should be exercised when using an impact driver, otherwise screw failure or spin out may occur.

• The hex head is fully seated when the head is flush with the work surface.
• Overdriving my result in fastener failure or strip out of the work surface.
• The fastener must penetrate beyond the metal three full thread pitches.

Recommended Application

For heavy gauge steel-to-steel attachment 43 mil (18ga) or thicker.
