AFVP
FEATURES

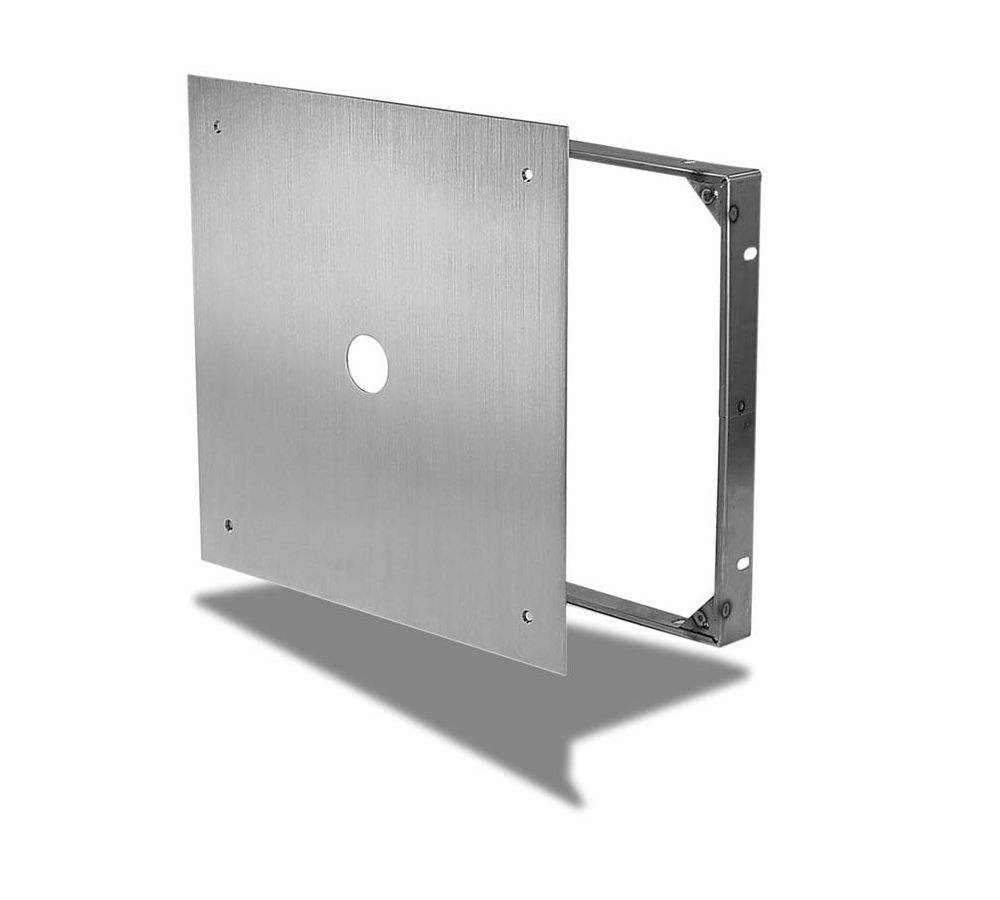

The Acudor AFVP is a flush valve panel. The AFVP Provides quick and easy access to flush valves that are concealed in the wall.
- Door pane
ADDITIONAL INFORMATION

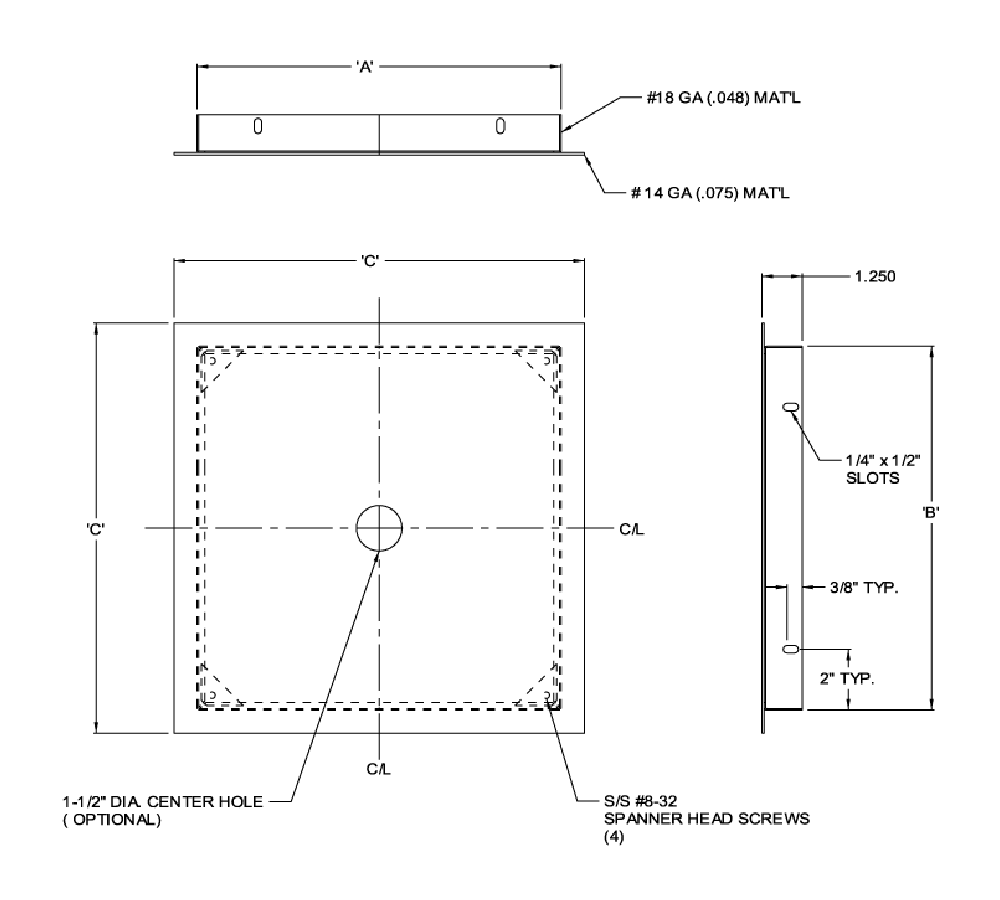

Material: 18 gauge stainless steel
Door: Overlaps frame, completely removable via tamperproof stainless steel screws. Door panel to have 1-1/2" dia. hole in center.
Mounting Frame: 1-1/4" deep
Standard Latch: Tamperproof stainless steel screws
Finish: Stainless Steel: Type 304 - #4 satin polish
Files to download
Last Modified: 2025-04-24
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | AFVP | 12 x 12 (305 x 305) |
---
|
|
|
| Special Order | AFVP | 15 x 15 (381 x 381) |
---
|
|
