ARVB
FEATURES

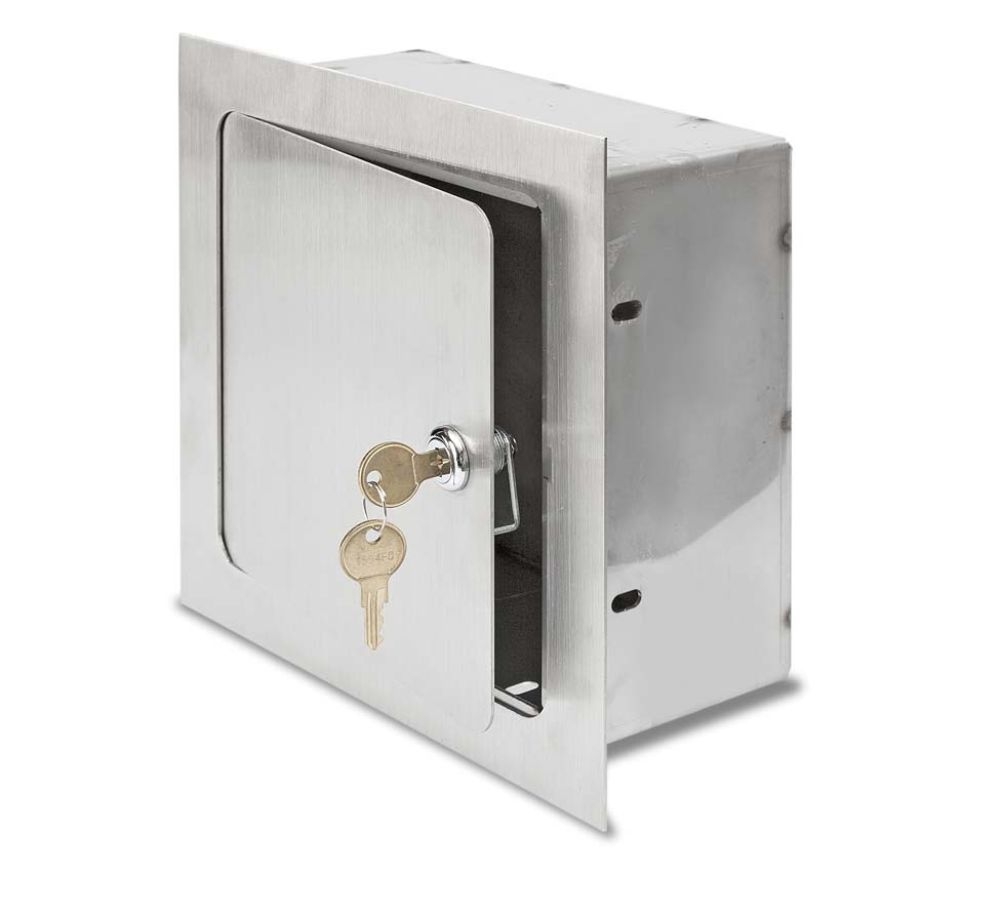

The Acudor ARVB is a recessed valve box. The ARVB Provides easy access to all types of valves and controls that need to be concealed in the wall, but protected b
ADDITIONAL INFORMATION

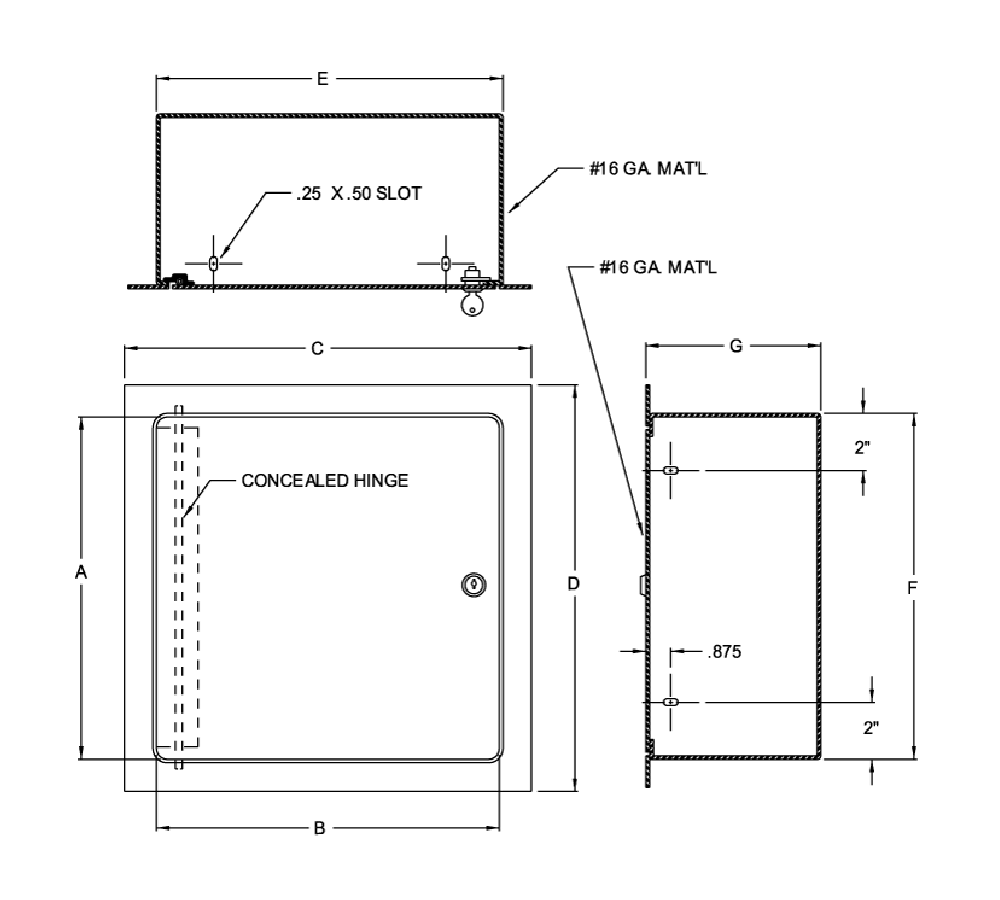

Material: Stainless Steel or Steel: 16 gauge door, frame, box
Door: 16 gauge, flush to frame — rounded safety corners
Frame: 16 gauge, one piece outer flange welded to box
Box: 16 gauge, fully enclosed, completely attached to frame. When required box can be made with open back.
Hinge: Continuous, concealed
Latch: Cylinder lock & key, Also available: Slotted Screwdriver Cam Latch, spanner head cam latch, flush paddle handle, thumb turn latch.
Finish: Stainless Steel: Type 304 #4 satin polish or Steel: 5 stage iron phosphate preparation with baked white finish
Files to download
Last Modified: 2025-04-24
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | ARVB | 8 x 8 x 4 |
---
|
|
|
| Special Order | ARVB | 8 x 8 x 6 |
---
|
|
|
| Special Order | ARVB | 8 x 8 x 8 |
---
|
|
|
| Special Order | ARVB | 12 x 12 x 4 |
---
|
|
|
| Special Order | ARVB | 12 x 12 x 6 |
---
|
|
|
| Special Order | ARVB | 12 x 12 x 8 |
---
|
|
