ASVB
FEATURES

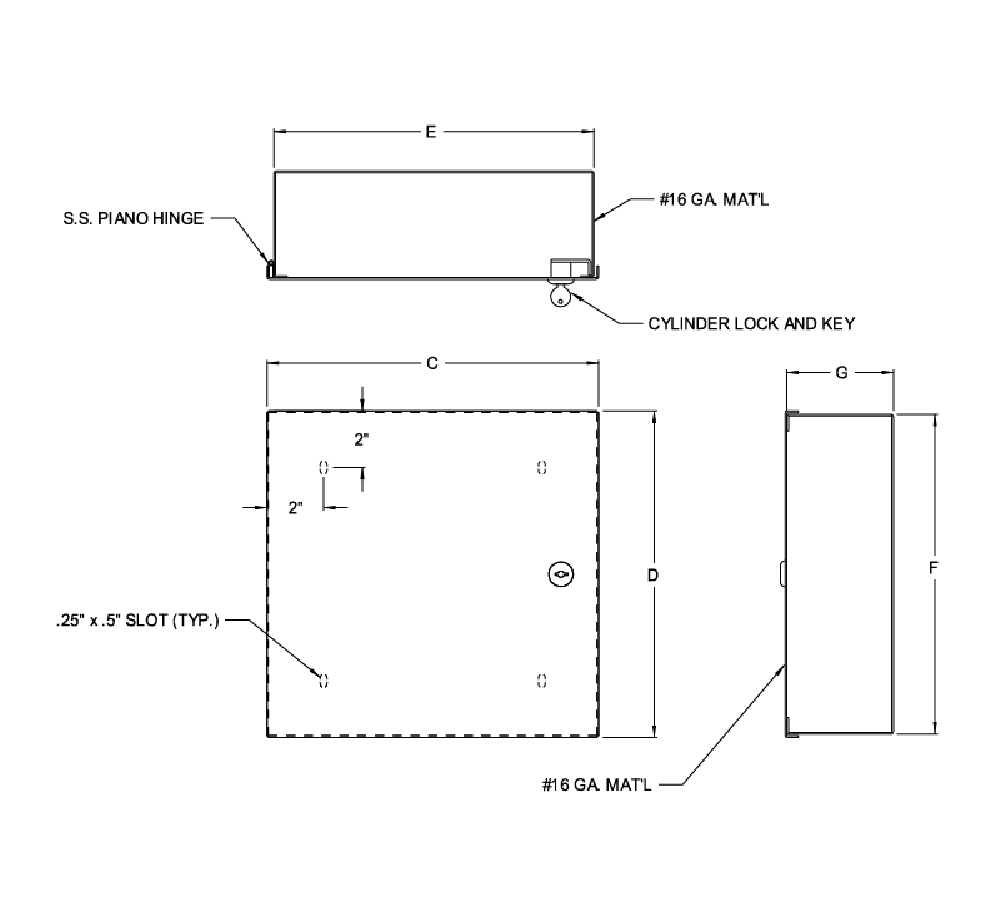

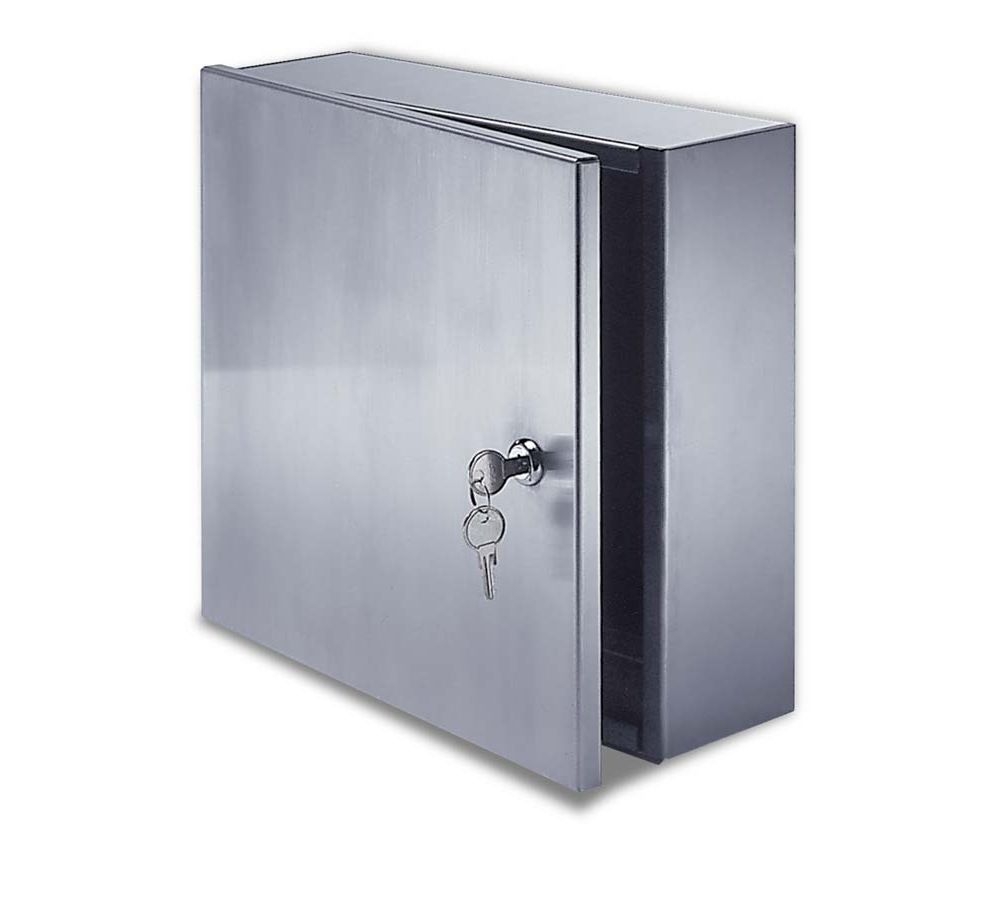

The Acudor ASVB is a surface mounted valve box. The ASVB provides easy access to valves and controls that extend outside of the finished wall, needing protection
ADDITIONAL INFORMATION
Material: Stainless Steel or Steel: door & box
Door: 16 gauge, overlaps box, providing for a tight secure fit
Box: 16 gauge, fully enclosed, completely attached to frame. When required box can be made with open back.
Hinge: Continuous, exposed piano hinge
Standard Latch: Cylinder lock & key.
Also Available: Slotted Screwdriver Cam Latch, allen head cam latch, spanner head cam latch, flush paddle handle, thumb turn latch
Finish: Stainless Steel: Type 304 #4 satin polish or Steel: 5 stage iron phosphate preparation with baked white finish
Files to download
Last Modified: 2025-04-24
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | ASVB | 8 x 8 x 4 |
---
|
|
|
| Special Order | ASVB | 8 x 8 x 6 |
---
|
|
|
| Special Order | ASVB | 8 x 8 x 8 |
---
|
|
|
| Special Order | ASVB | 12 x 12 x 4 |
---
|
|
|
| Special Order | ASVB | 12 x 12 x 6 |
---
|
|
|
| Special Order | ASVB | 12 x 12 x 8 |
---
|
|
