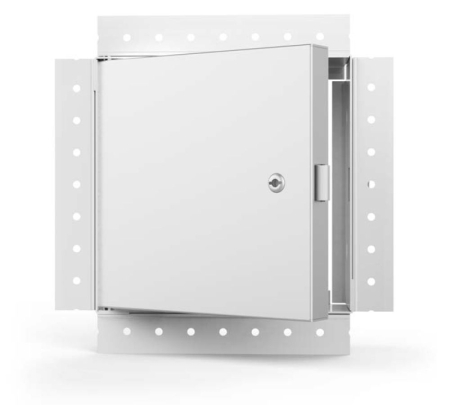

FB-5060-DW
FEATURES

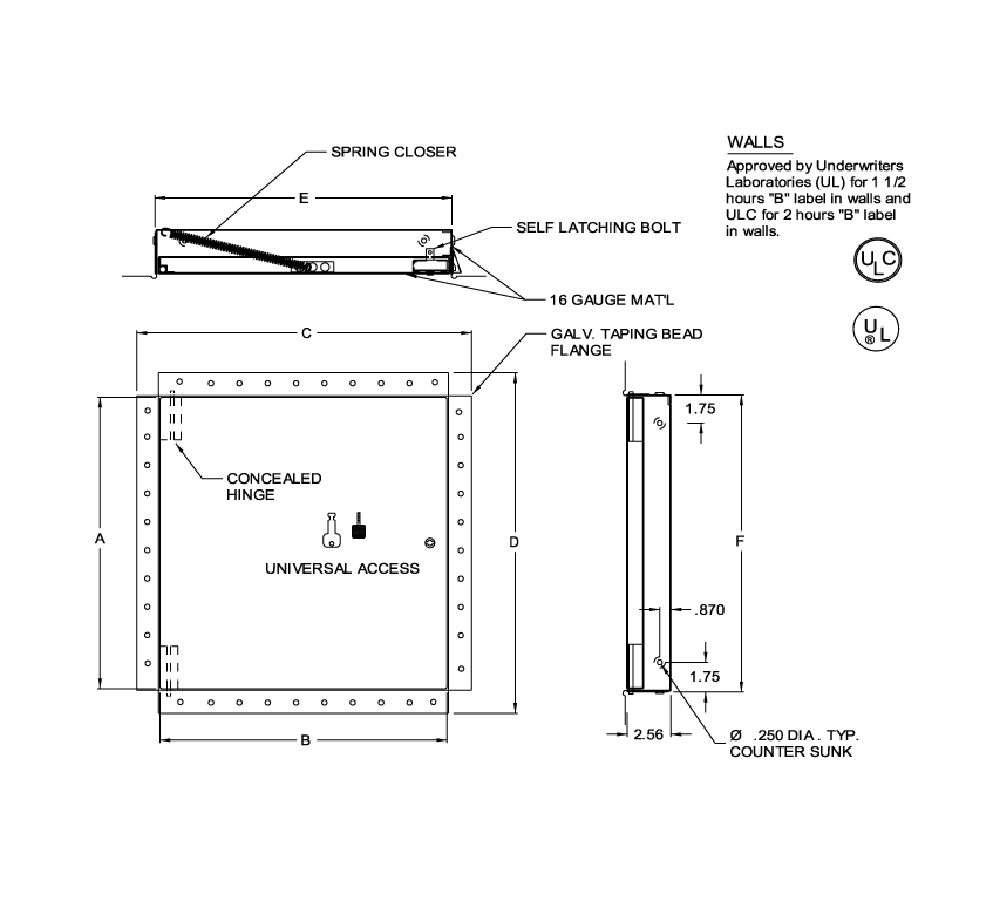

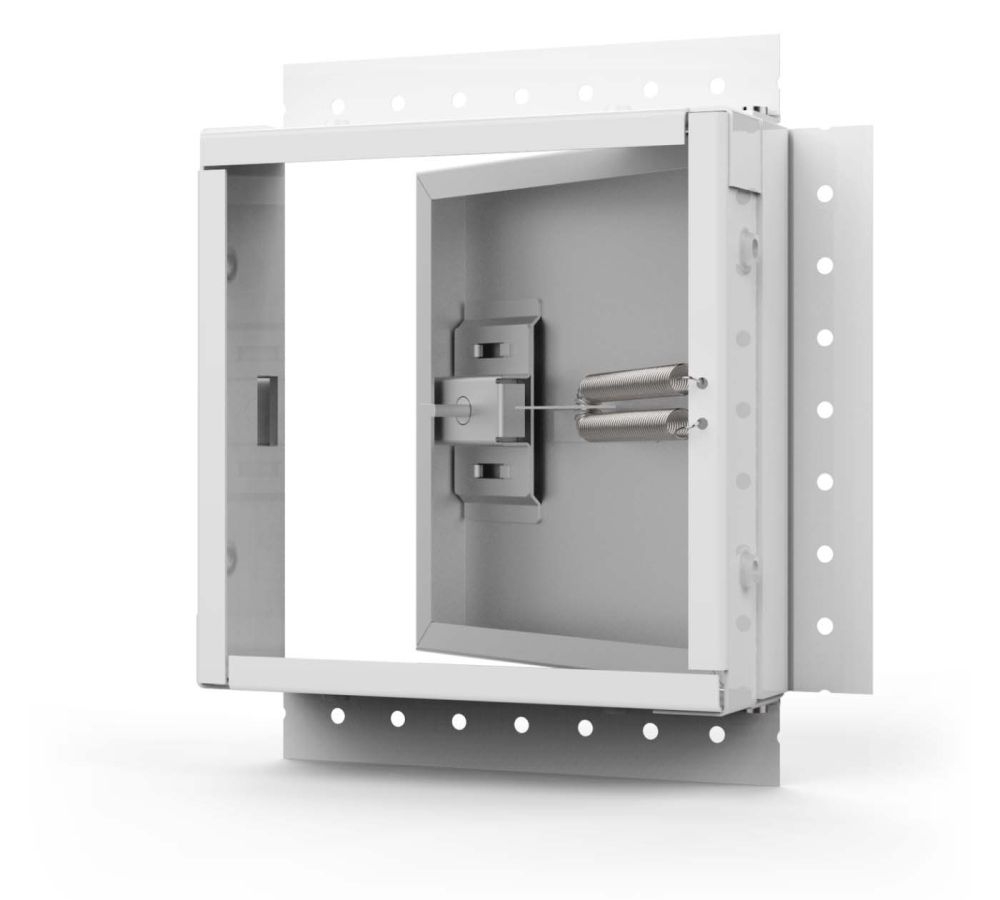

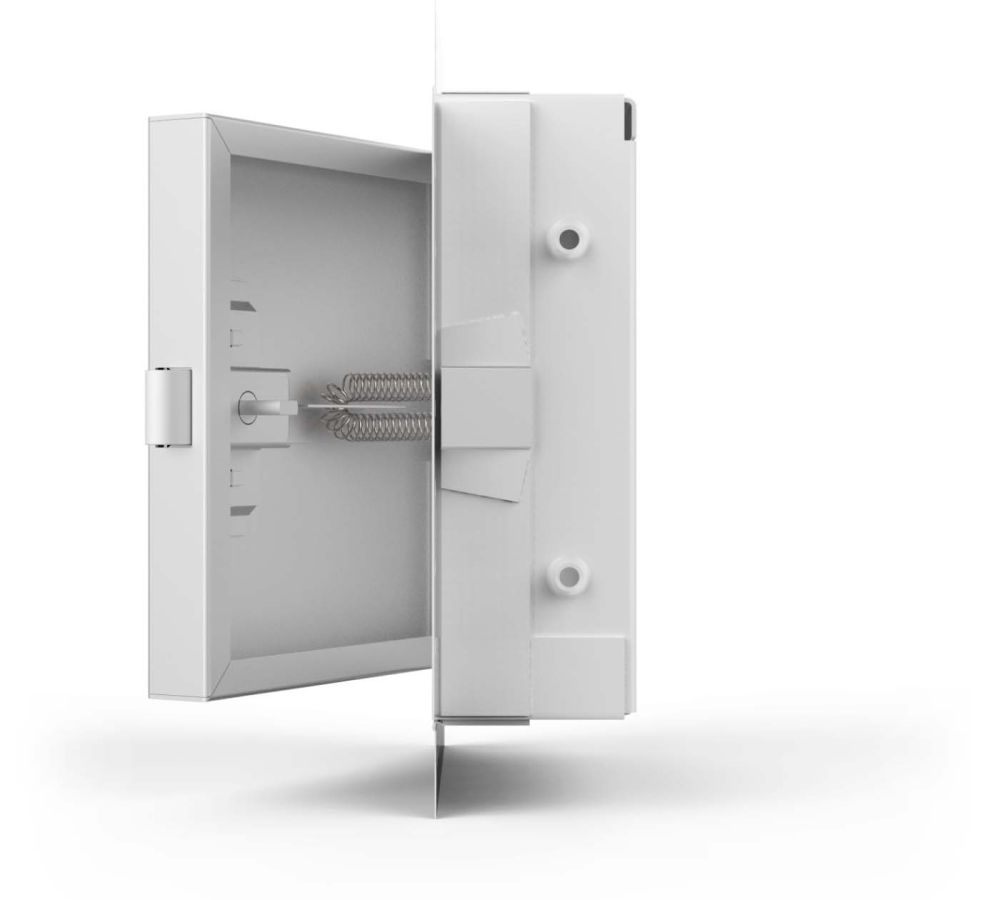

The Acudor FB-5060-DW is an uninsulated, fire-rated, metal access door for drywall walls. The FB-5060-DW has a drywall taping bead for seamless installation.
ADDITIONAL INFORMATION
Material Steel or Stainless Steel
Door 16 gauge
Mounting Frame 16 gauge. Flush to frame with reinforced edges, drywall taping bead flange
Hinge: Concealed
Fire Rating (Walls) UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional) Max size 36 x 48
Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Last Modified: 2025-04-23
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | FB-5060-DW | 8 x 8 (203 x 203) |
---
|
|
|
| Special Order | FB-5060-DW | 10 x 10 (254 X 254) |
---
|
|
|
| Special Order | FB-5060-DW | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | FB-5060-DW | 14 x 14 (356 X 356) |
---
|
|
|
| Special Order | FB-5060-DW | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | FB-5060-DW | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | FB-5060-DW | 20 x 20 (508 X 508) |
---
|
|
|
| Special Order | FB-5060-DW | 22 x 30 (560 X 762) |
---
|
|
|
| Special Order | FB-5060-DW | 22 x 36 (560 X 914) |
---
|
|
|
| Special Order | FB-5060-DW | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | FB-5060-DW | 24 x 36 (610 X 914) |
---
|
|
|
| Special Order | FB-5060-DW | 24 x 36 (610 X 914) |
---
|
|
|
| Special Order | FB-5060-DW | 30 x 30 (762 X 762) |
---
|
|
|
| Special Order | FB-5060-DW | 36 x 36 (914 X 914) |
---
|
|
|
| Special Order | FB-5060-DW | 36 x 48 (914 X 1220) |
---
|
|
