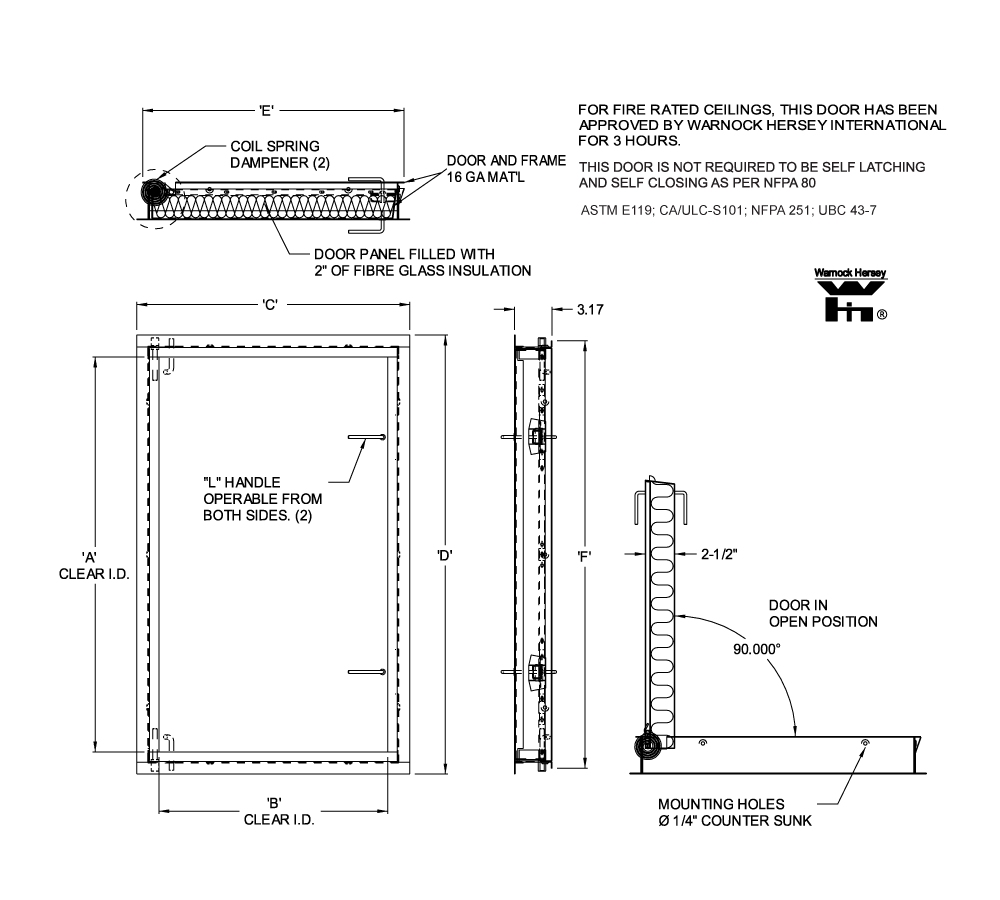

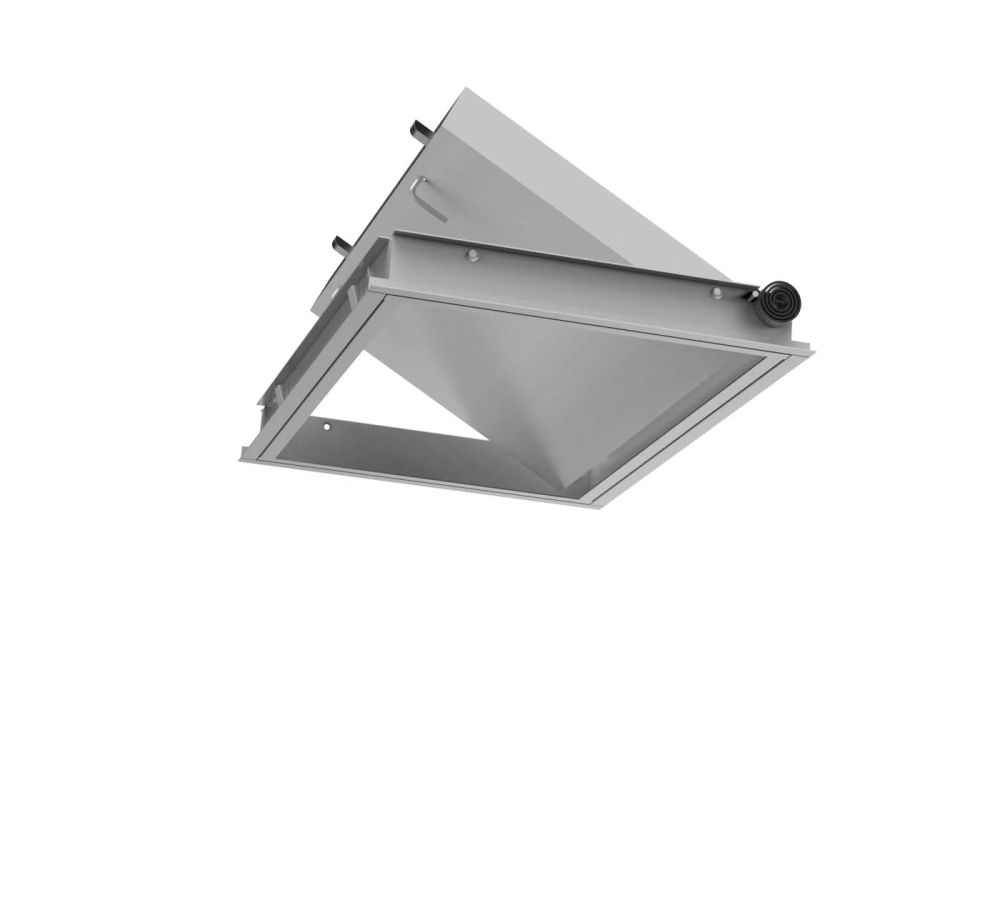

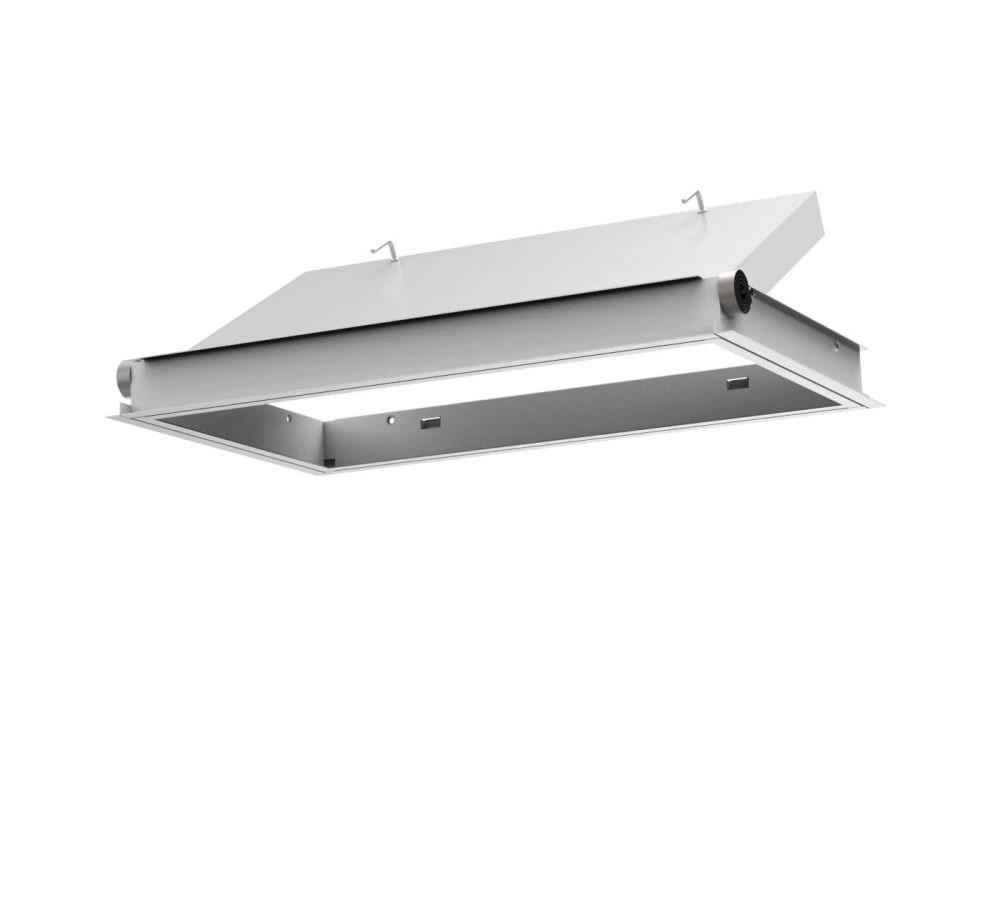

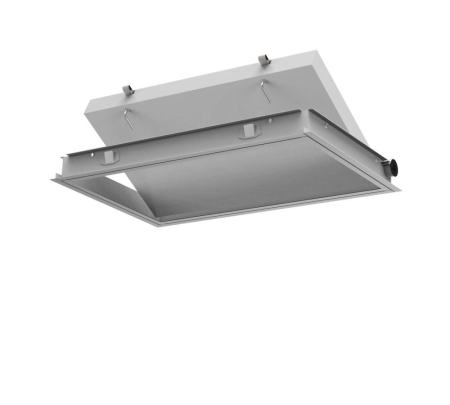

The Acudor FW-5050-UP is a fire-rated, insulated, metal access door. The FW-5050-UP is designed as an upswing door for ceilings.
- For Ceil
Material: Steel or Stainless Steel
Door: 16 gauge, Flush to frame with reinforced edges filled with 2” thick fire insulation
Mounting Frame: 16 gauge mounting frame, with trim 1" wide
Hinge: Concealed with coil spring for dampening
Fire Rating (Ceilings) Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24x 36
Standard Compliances ASTM E119; CA/ULC-S101; NFPA 251; UBC 43-7
Standard Latch: L Handle - operable from both sides
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Last Modified: 2025-04-23
Share
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | FW-5050-UP | 22 x 30 (560 X 762) |
---
|
|
|
| Special Order | FW-5050-UP | 22 x 36 (560 X 914) |
---
|
|
|
| Special Order | FW-5050-UP | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | FW-5050-UP | 24 x 36 (610 X 914) |
---
|
|
