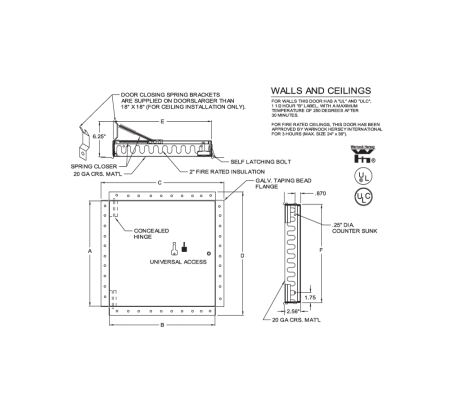

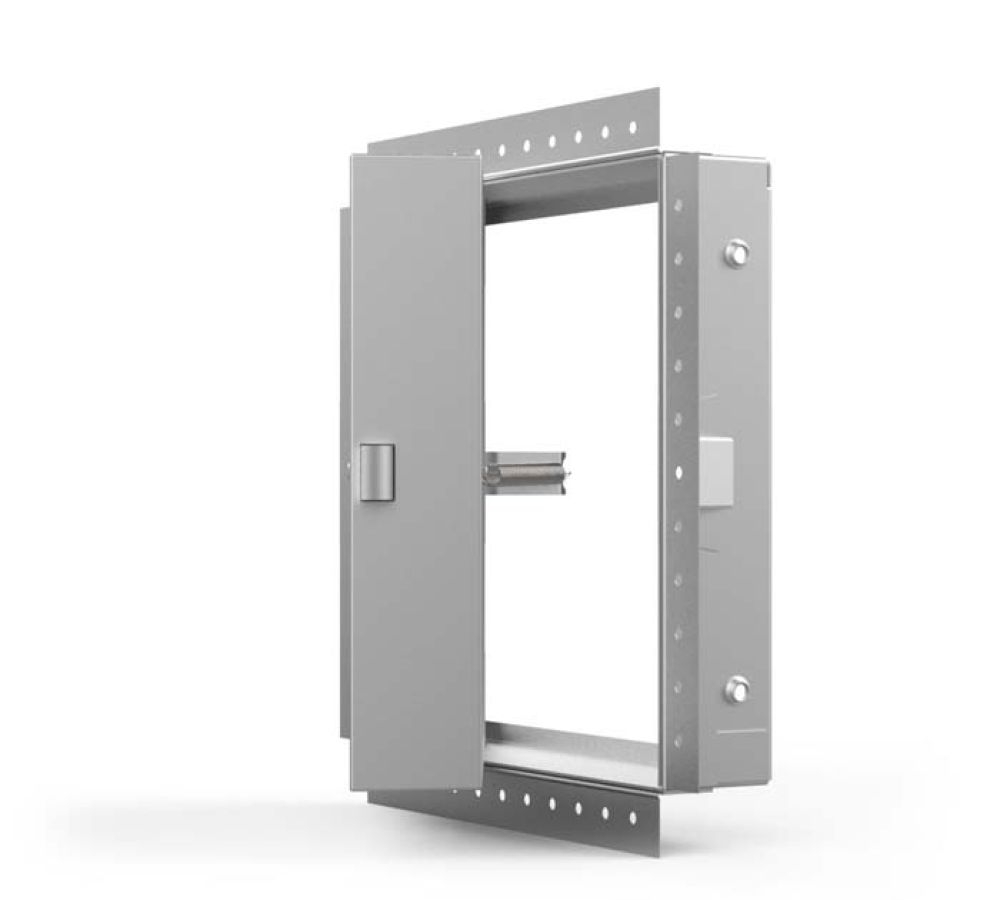

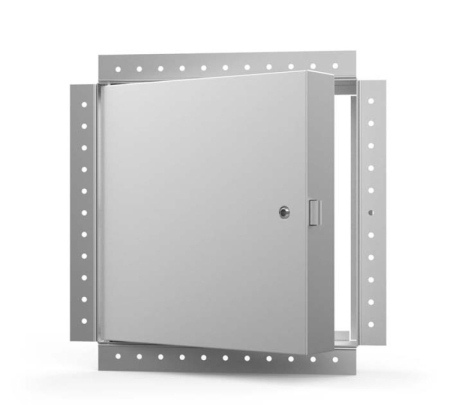

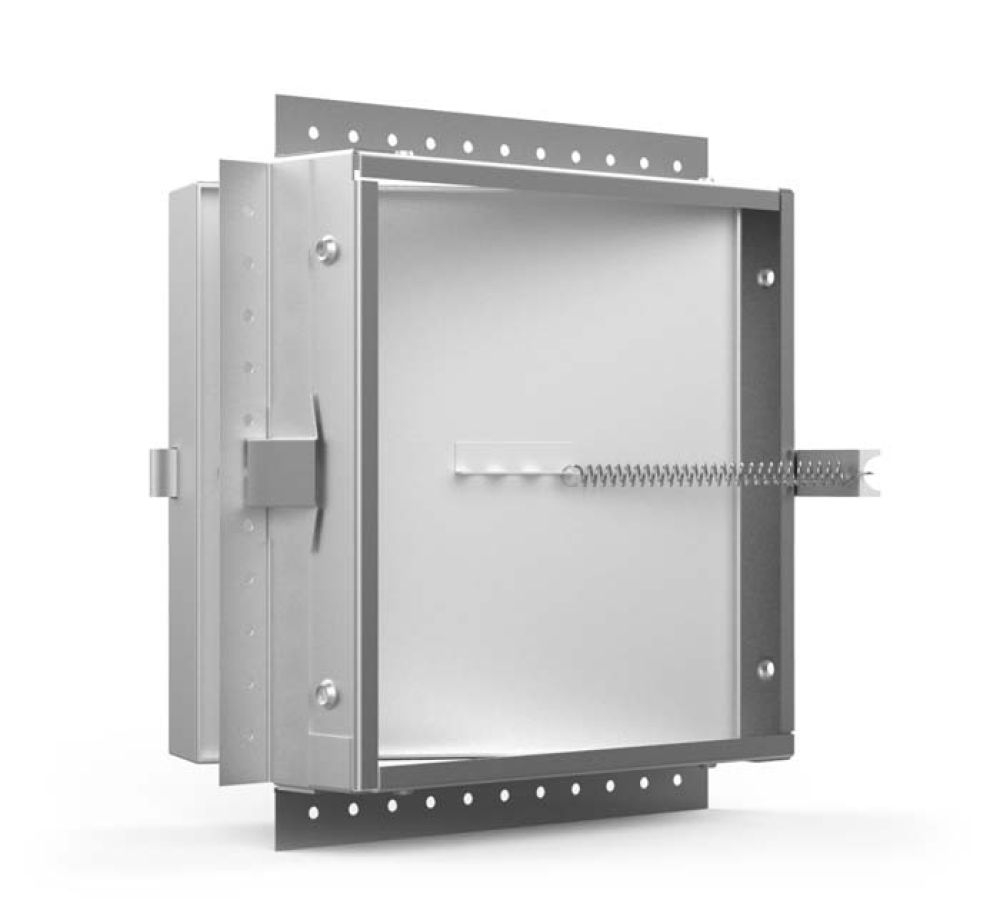

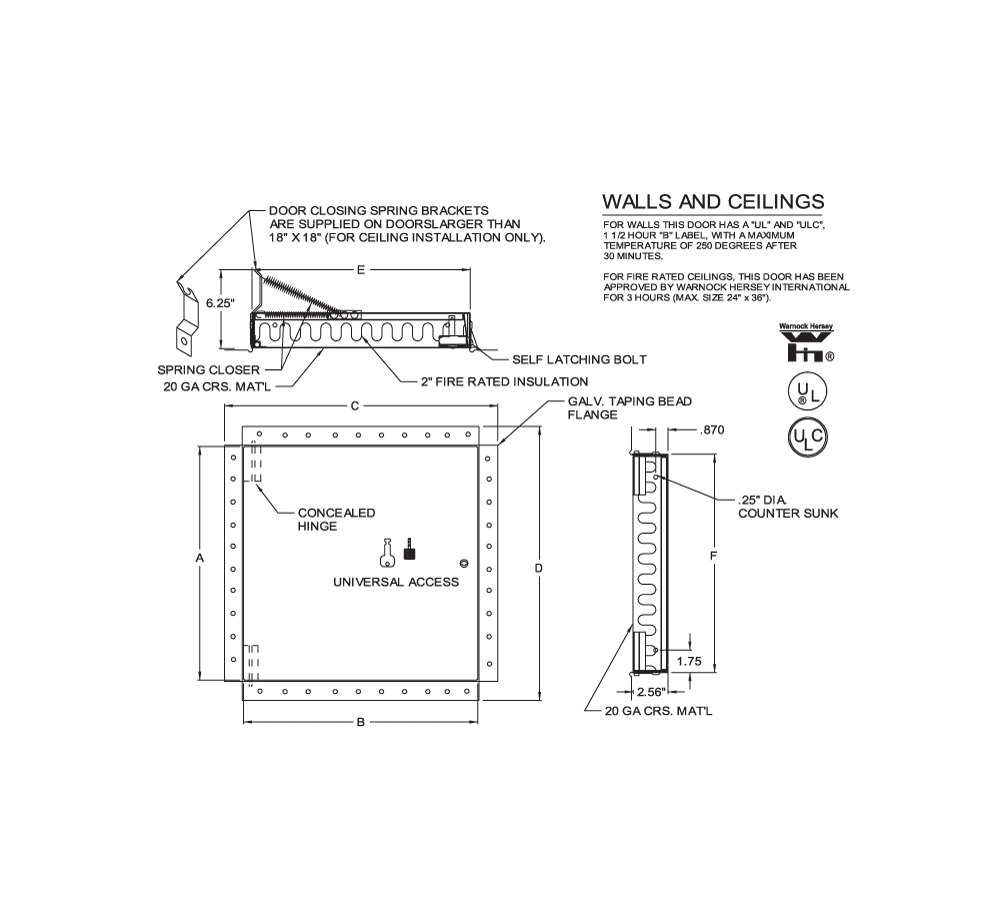

The Acudor FW-5050-DW is a fire-rated, insulated, metal access door. The FW-5050-DW is designed for drywall walls and ceilings when temperature rise or heat tran
Material Steel or Stainless Steel
Door 20 gauge, filled with 2" thick fire rated insulation
Mounting Frame 16 gauge, flange to be drywall taping bead flange
Hinge: Concealed
Fire Rating (Walls) UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. Max size: 36 x 48.
Fire Rating (Ceilings) Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24 x 36
Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. Doors can be prepared for mortise cylinder locks (Master Keying).
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Last Modified: 2025-05-19
Share
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | FW-5050-DW | 8 x 8 (203 x 203) |
---
|
|
|
| Special Order | FW-5050-DW | 10 x 10 (254 X 254) |
---
|
|
|
| Special Order | FW-5050-DW | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | FW-5050-DW | 14 x 14 (356 X 356) |
---
|
|
|
| Special Order | FW-5050-DW | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | FW-5050-DW | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | FW-5050-DW | 22 x 30 (560 X 762) |
---
|
|
|
| Special Order | FW-5050-DW | 22 x 36 (560 X 914) |
---
|
|
|
| Special Order | FW-5050-DW | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | FW-5050-DW | 24 x 30 (610 X762) |
---
|
|
|
| Special Order | FW-5050-DW | 24 x 36 (610 X 914) |
---
|
|
|
| Special Order | FW-5050-DW | 24 x 48 (610 X 1220) |
---
|
|
|
| Special Order | FW-5050-DW | 30 x 30 (762 X 762) |
---
|
|
|
| Special Order | FW-5050-DW | 36 x 36 (914 X 914) |
---
|
|
|
| Special Order | FW-5050-DW | 36 x 48 (914 X 1220) |
---
|
|
