FB-5060
FEATURES

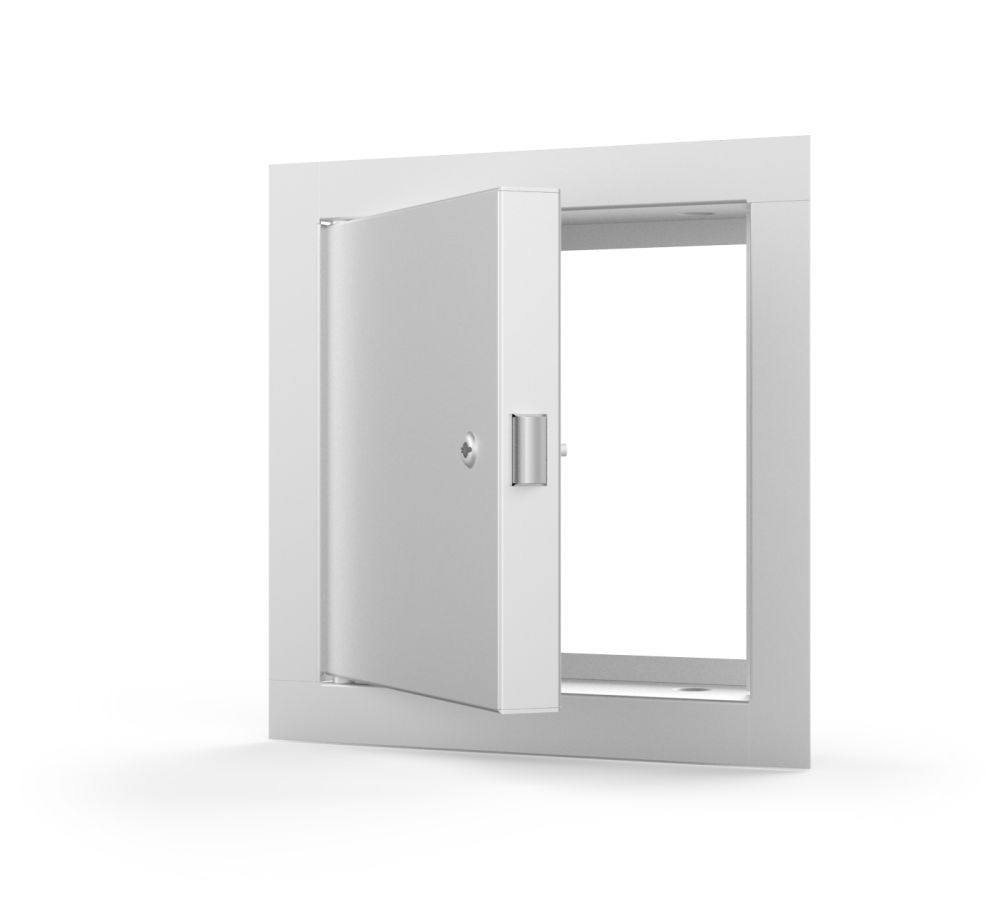

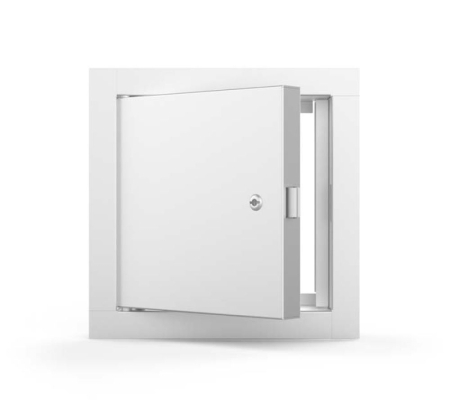

The Acudor FB-5060 is an uninsulated, fire-rated, metal access door for walls.
- Designed to maintain continuity in a 2 hour fire rated wal
ADDITIONAL INFORMATION

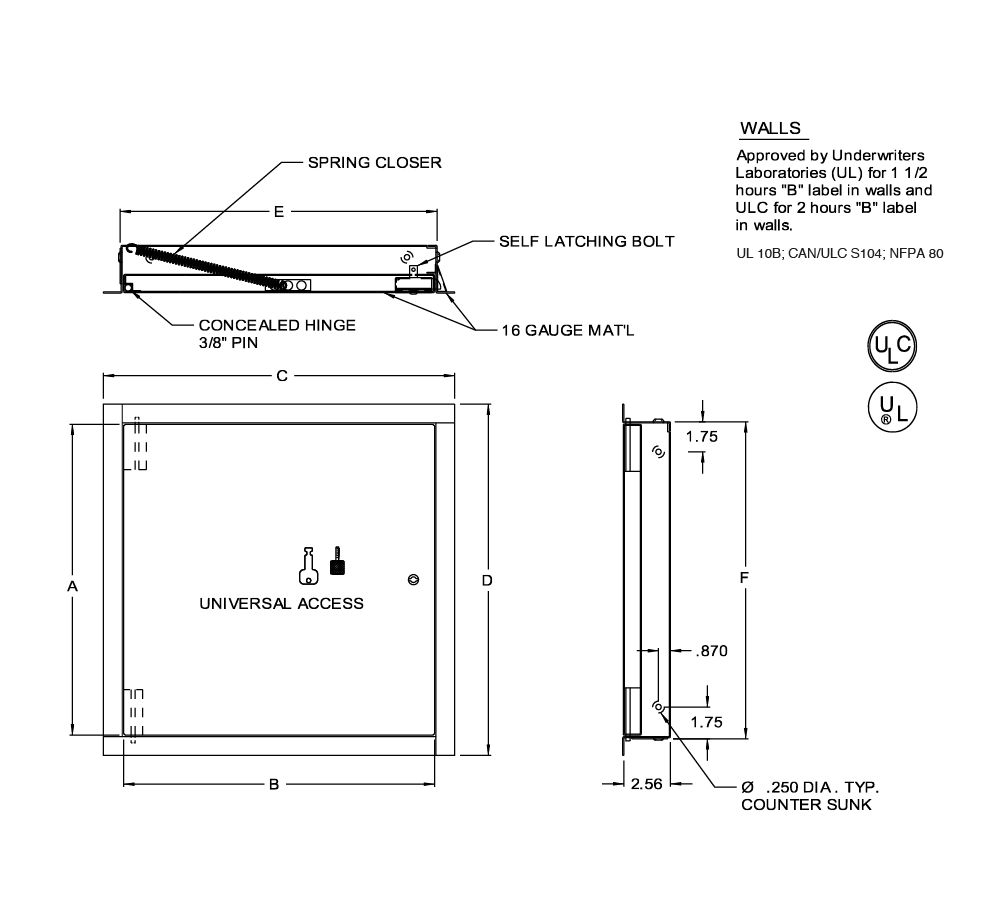

Door / Door Frame: Steel or Stainless Steel: 16 gauge door, 16 gauge mounting frame. Flush to frame with reinforced edges, flange to be 1" wide
Hinge: Concealed
Fire Rating (Walls) UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional). Max sizes 36 x 48 and 24” x 79”
Standard Compliances: UL 10B; CAN/ULC S104; NFPA 80

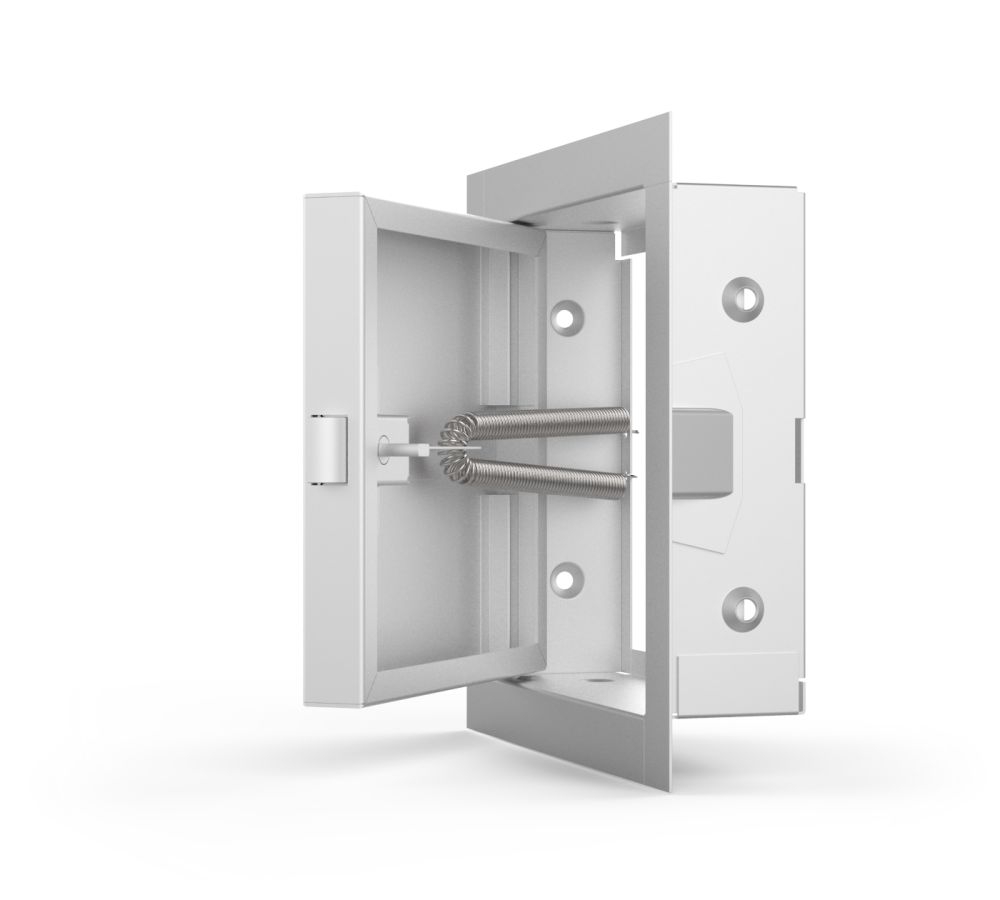

Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Files to download
Last Modified: 2025-04-23
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| 55550008 | FB-5060 | 8 x 8 (203 x 203) |
$160.00
|
|
|
| Special Order | FB-5060 | 10 x 10 (254 X 254) |
$168.00
|
|
|
| 55560012 | FB-5060 | 12 x 12 (305 X 305) |
$162.00
|
|
|
| Special Order | FB-5060 | 14 x 14 (356 X 356) |
$193.00
|
|
|
| 55570016 | FB-5060 | 16 x 16 (406 X 406) |
$200.00
|
|
|
| 55580018 | FB-5060 | 18 x 18 (457 X 457) |
$220.00
|
|
|
| Special Order | FB-5060 | 20 x 20 (508 X 508) |
$282.00
|
|
|
| Special Order | FB-5060 | 22 x 30 (560 X 762) |
$347.00
|
|
|
| Special Order | FB-5060 | 22 x 36 (560 X 914) |
$363.00
|
|
|
| 55590024 | FB-5060 | 24 x 24 (610 X 610) |
$314.00
|
|
|
| Special Order | FB-5060 | 24 x 36 (610 X 914) |
$396.00
|
|
|
| Special Order | FB-5060 | 24 x 48 (610 X 1220) |
$450.00
|
|
|
| Special Order | FB-5060 | 30 x 30 (762 X 762) |
$434.00
|
|
|
| Special Order | FB-5060 | 36 x 36 (914 X 914) |
$561.00
|
|
|
| Special Order | FB-5060 | 36 x 48 (914 X 1220) |
$781.00
|
|
