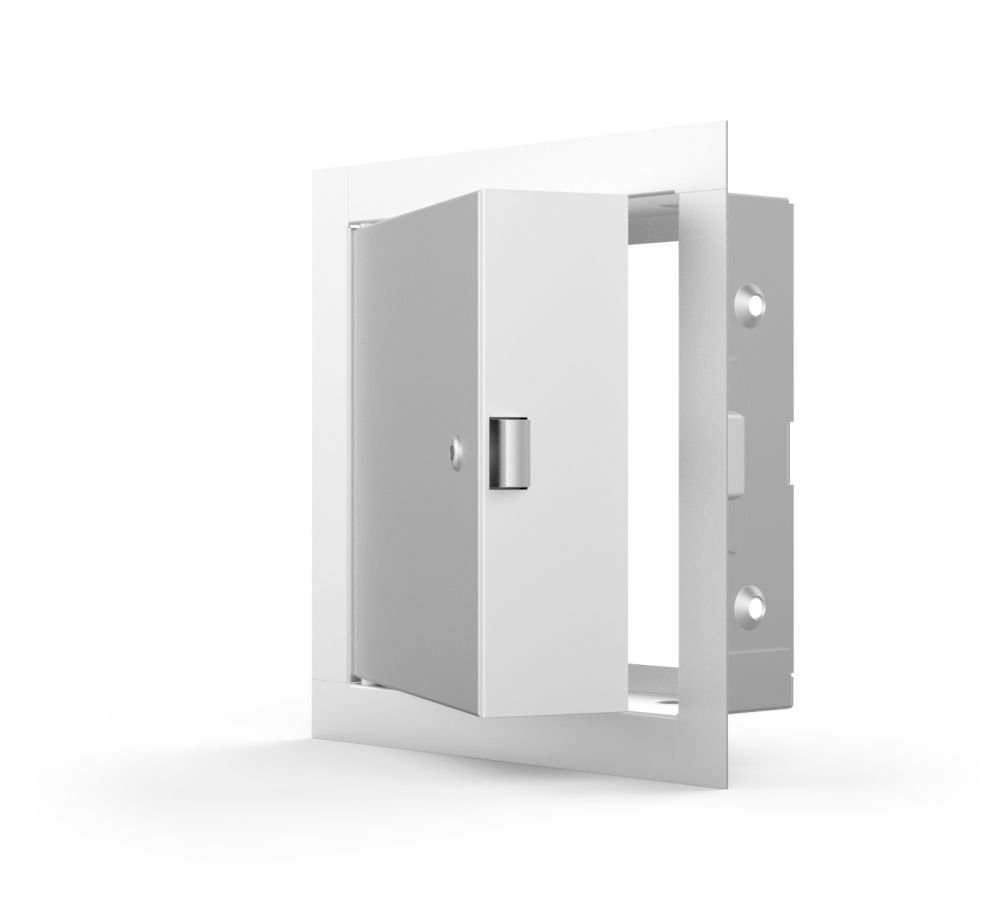

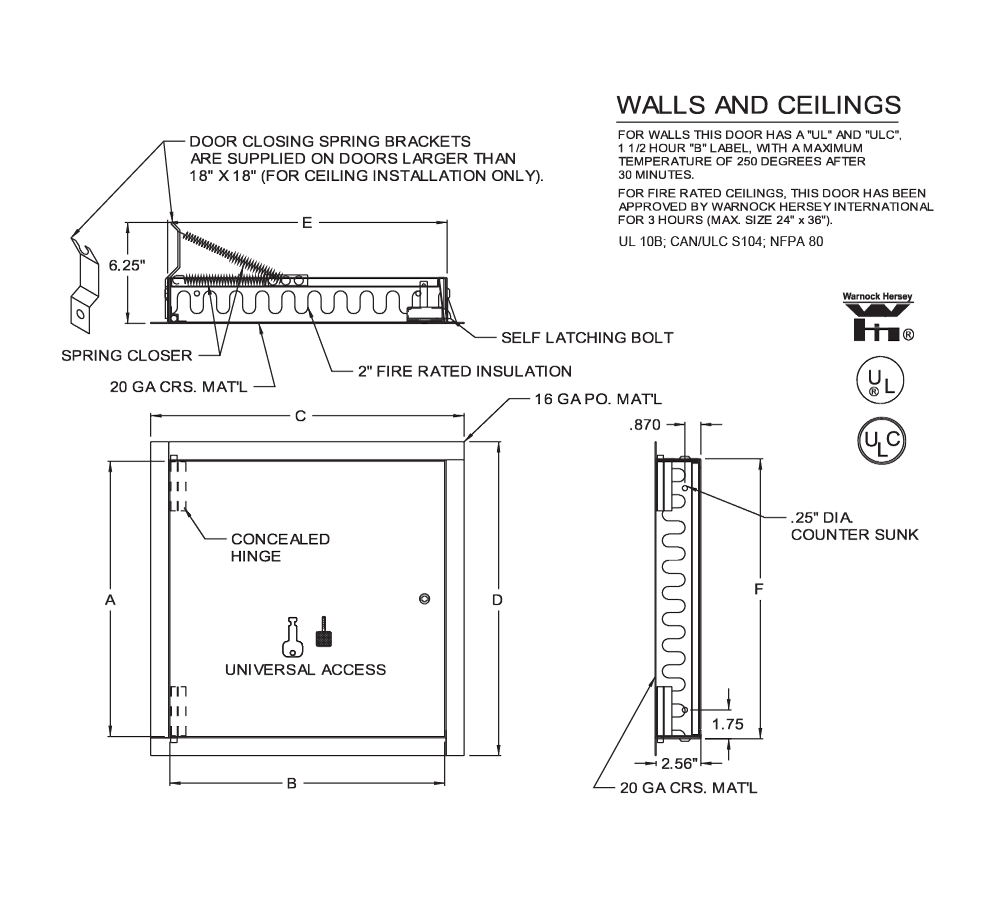

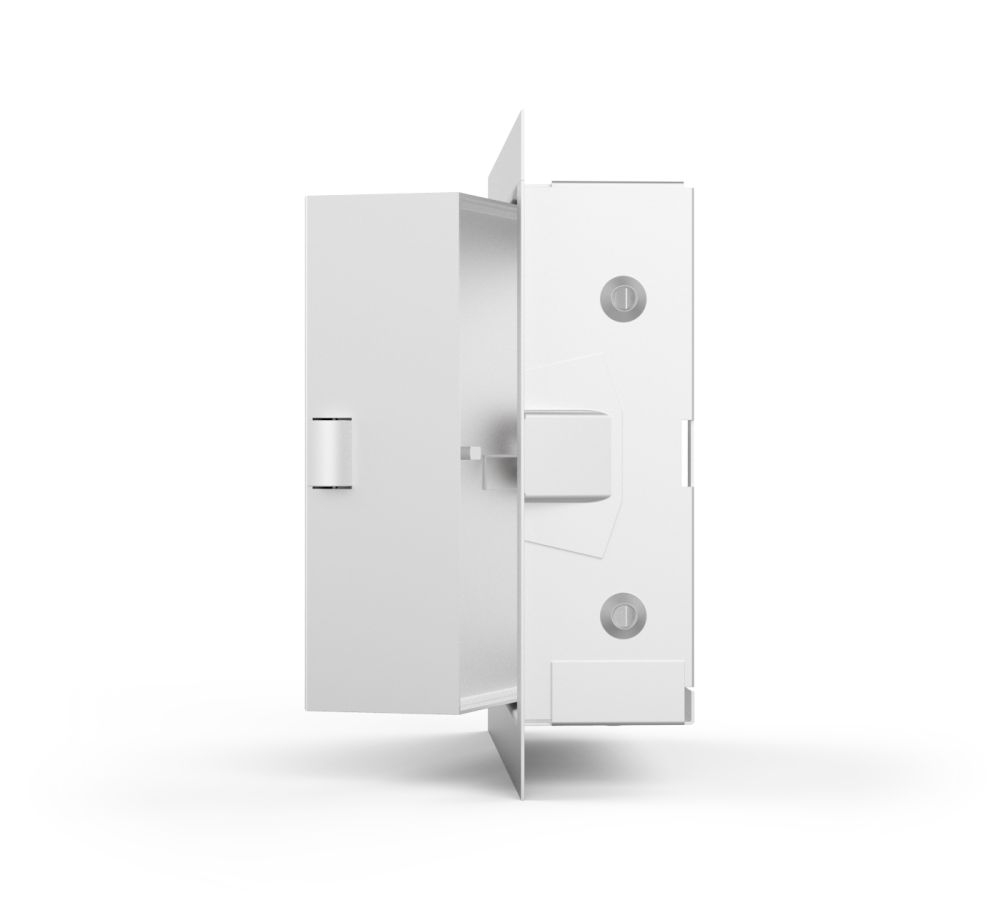

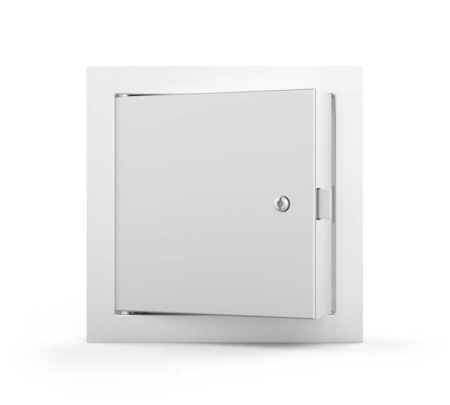

The Acudor FW-5050 is a fire-rated, insulated, metal access door. The FW-5050 is designed for walls and ceilings when temperature rise or heat transmission is a
Door / Door Frame: Door / Door Frame: Steel or Stainless Steel: 20 gauge door,16 gauge mounting frame Door filled with 2" thick fire rated insulation, flange to be 1" wide
Hinge: Concealed
Fire Rating (Walls) UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. Max size: 36 x 48.
Fire Rating (Ceilings) Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24 x 36
Standard Compliances: UL 10B; CAN/ULC S104; NFPA 80
Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for mortise cylinder locks.
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Last Modified: 2025-04-23
Share
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| 55600008 | FW-5050 | 8 x 8 (203 x 203) |
---
|
|
|
| Special Order | FW-5050 | 10 x 10 (254 X 254) |
---
|
|
|
| 55600012 | FW-5050 | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | FW-5050 | 14 x 14 (356 X 356) |
---
|
|
|
| 55600016 | FW-5050 | 16 x 16 (406 X 406) |
---
|
|
|
| 55600018 | FW-5050 | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | FW-5050 | 20 x 20 (508 X 508) |
---
|
|
|
| Special Order | FW-5050 | 22 x 30 (560 X 762) |
---
|
|
|
| Special Order | FW-5050 | 22 x 36 (560 X 914) |
---
|
|
|
| 55600024 | FW-5050 | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | FW-5050 | 24 x 30 (610 X 762) |
---
|
|
|
| Special Order | FW-5050 | 24 x 36 (610 X 914) |
---
|
|
|
| Special Order | FW-5050 | 24 x 48 (610 X 1220) |
---
|
|
|
| Special Order | FW-5050 | 30 x 30 (762 X 762) |
---
|
|
|
| Special Order | FW-5050 | 36 x 36 (914 X 914) |
---
|
|
|
| Special Order | FW-5050 | 36 x 48 (914 X 1220) |
---
|
|
