FB-5060-TD
FEATURES

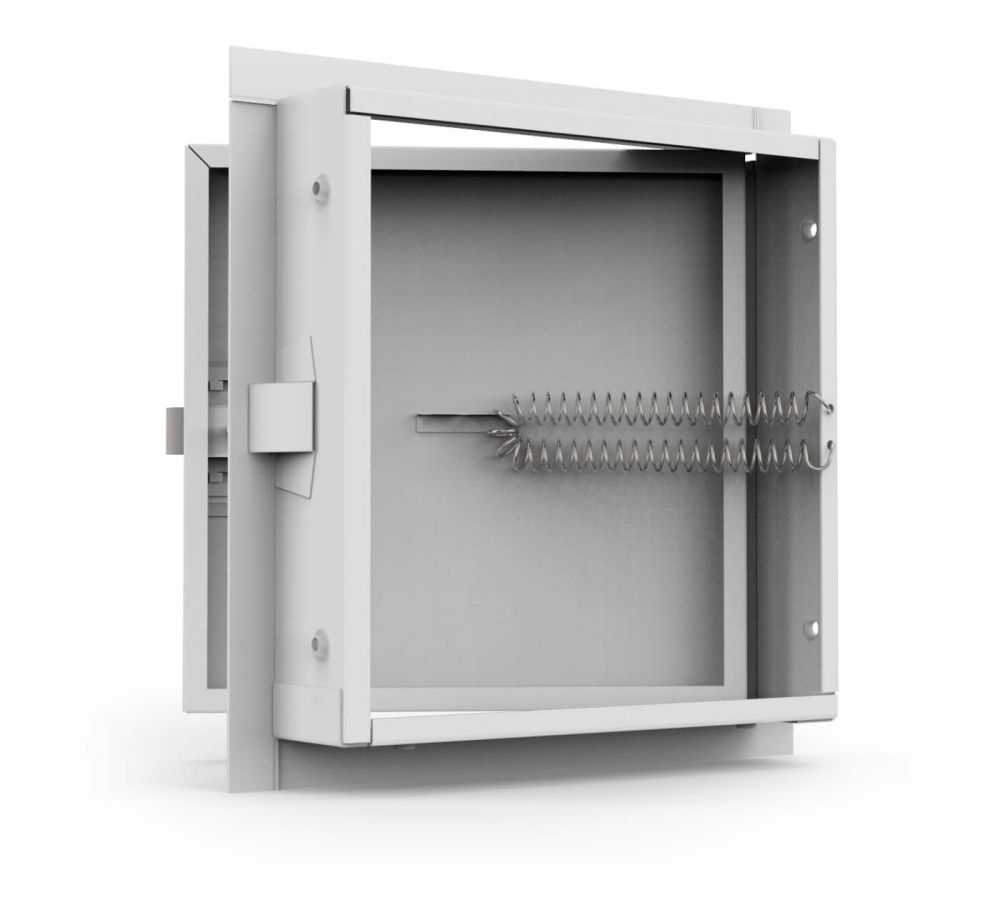

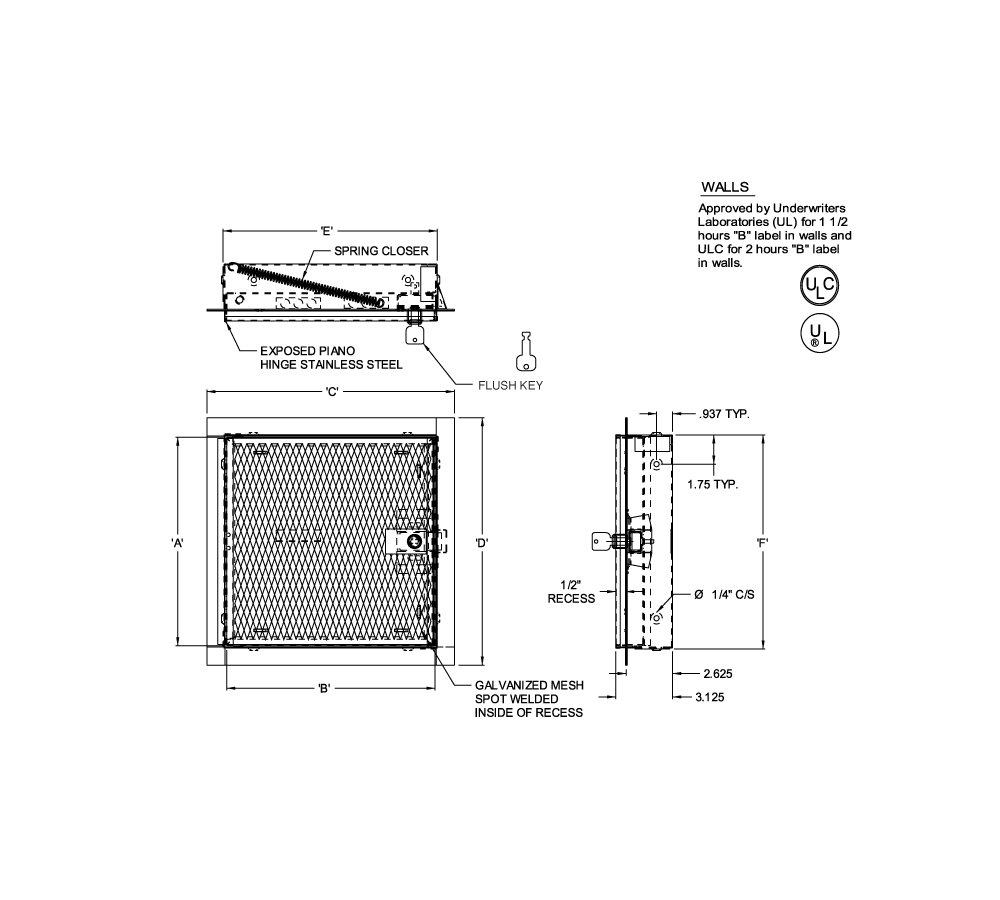

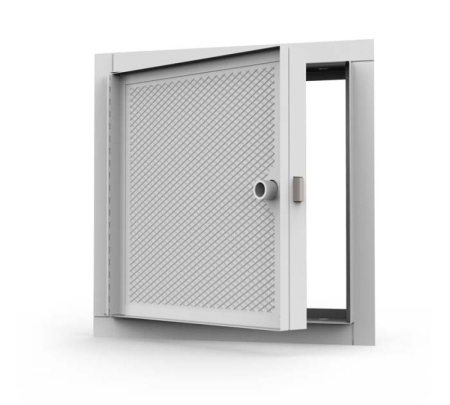

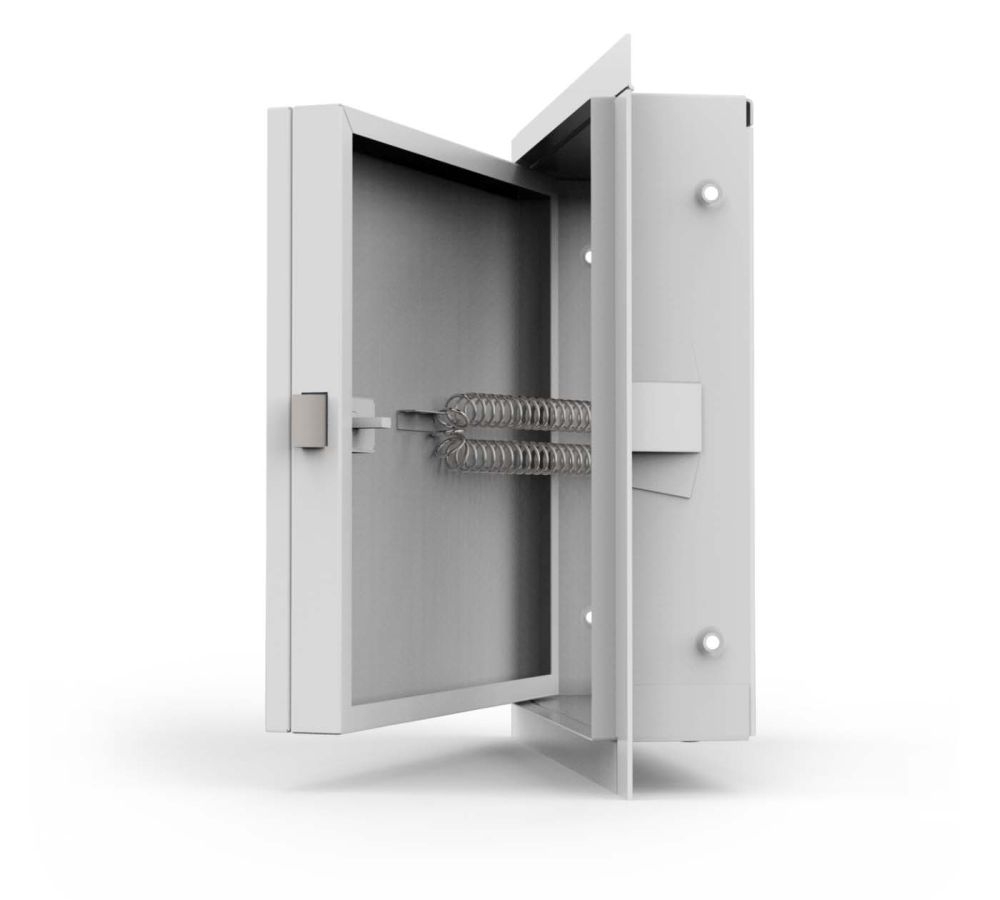

The Acudor FB-5060-TD is an uninsulated, fire-rated, metal access door recessed for tile. The FB-5060-TD is to be used whenever it is necessary to provide access
ADDITIONAL INFORMATION
Material: Steel
Door: 16 gauge with reinforced edges, door pane recessed 1/2” and lined with self-furring lath.
Mounting Frame: 16 gauge steel
Hinge: Continuous exposed piano hinge
Fire Rating (Walls) UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional) Max size 36 x 48
Standard Latch: Universal self-latching bolt, operated by a flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Last Modified: 2025-04-23
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | FB-5060-TD | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | FB-5060-TD | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | FB-5060-TD | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | FB-5060-TD | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | FB-5060-TD | 24 x 36 (610 X 914) |
---
|
|
