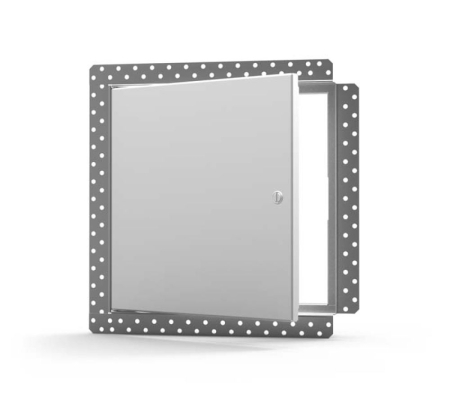

DW-5040
FEATURES
The Acudor DW-5040 is a metal access door with drywall bead flange, designed specifically for installation in drywall walls and ceilings after the drywall has be
ADDITIONAL INFORMATION
- Material: 20 gauge galvanized formed door panel, 26 gauge galvanized frame
- Door: Formed door panel with multiple bends for added strength, flanged on four sides, Integral perforated taping bead adds rigidity
- Hinge: Concealed
- Standard Latch: Slotted Screwdriver Cam Latch
- Optional Latches / Locks: Cylinder lock & key; allen head cam latch; spanner head cam latch, torx, torx head with security pin
- Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Files to download
Last Modified: 2025-04-21
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| 53100006 | DW-5040 | 6 X 6 (152 X 152) |
$45.00
|
|
|
| 53100008 | DW-5040 | 8 X 8 (203 X 203) |
$45.00
|
|
|
| 53100010 | DW-5040 | 10 X 10 (254 X 254) |
$47.00
|
|
|
| 53100012 | DW-5040 | 12 X 12 (305 X 305) |
$60.00
|
|
|
| Special Order | DW-5040 | 12 X 24 (305 X 610) |
---
|
|
|
| 53100014 | DW-5040 | 14 X 14 (355 X 355) |
$77.00
|
|
|
| 53100016 | DW-5040 | 16 X 16 (406 X 406) |
$82.00
|
|
|
| Special Order | DW-5040 | 16 X 24 (406 X 610) |
---
|
|
|
| 53100018 | DW-5040 | 18 X 18 (457 X 457) |
$97.00
|
|
|
| Special Order | DW-5040 | 18 X 24 (457 X 610) |
---
|
|
|
| 53100022 | DW-5040 | 22 X 22 (560 X 560) |
$135.00
|
|
|
| 53100024 | DW-5040 | 24 X 24 (610 X 610) |
$122.00
|
|
|
| Special Order | DW-5040 | 24 X 36 (610 X 914) |
$206.00
|
|
|
| Special Order | DW-5040 | 24 X 48 (610 X 1219) |
---
|
|
|
| Special Order | DW-5040 | 30 X 30 (762 X 762) |
$273.00
|
|
|
| Special Order | DW-5040 | 36 X 36 (914 X 914) |
$378.00
|
|
|
| Special Order | DW-5040 | 36 X 48 (914 X 1219) |
---
|
|
