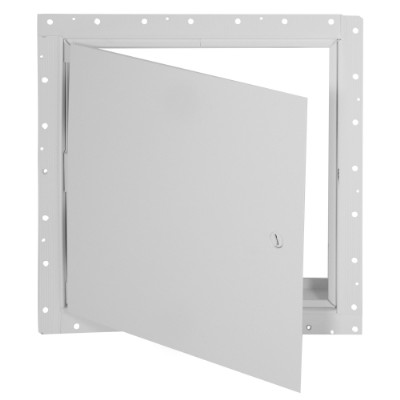

WB Drywall Bead Panels
Vendor: The Williams Brothers Corp
FEATURES
- Door and Trim - 16 ga. cold rolled steel door with 1” drywall bead and 24 ga. galvanized steel trim for mounting purposes
- Frame - 16 ga. cold rolled steel
- Hinge - Fully-concealed off-set hinge up to and including 24”x24”. Number of hinges varies with size of the door and will be placed on long side of door unless otherwise specified. Doors larger than 24”x24” have full length piano hinge.
- Latch - Flush, stainless steel cam operated with screwdriver. Latches are positioned opposite hinge as well as top and bottom on larger sizes.
- Finish - White powder coat paintable finish
Options (at extra cost)
- Key cylinder lock with key (code 151)
- Air-tight Neoprene Gasketing
- Stainless steel finish #304 or #316 (#4 satin finish)
Files to download
Last Modified: 2025-12-30
Share
Product Variations
| Door Size | Wall Opening | Hinges | Cam Latch | Weight (lbs) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|---|---|
| WB-DW 8" X 8" | + 1/4" | 1 | 1 | 3 |
---
|
|
|
| WB-DW 10" X 10" | + 1/4" | 1 | 1 | 5 |
---
|
|
|
| WB-DW 12" X 12" | + 1/4" | 1 | 1 | 7 |
---
|
|
|
| WB-DW 12" X 24" | + 1/4" | 3 | 2 | 12 |
---
|
|
|
| WB-DW 14" X 14" | + 1/4" | 2 | 3 | 9 |
---
|
|
|
| WB-DW 16" X 16" | + 1/4" | 2 | 3 | 11 |
---
|
|
|
| WB-DW 18" X 18" | + 1/4" | 2 | 3 | 12 |
---
|
|
|
| WB-DW 22" X 22" | + 1/4" | 3 | 4 | 18 |
---
|
|
|
| WB-DW 22" X 30" | + 1/4" | 4 | 4 | 24 |
---
|
|
|
| WB-DW 22" X 36" | + 1/4" | 5 | 5 | 27 |
---
|
|
|
| WB-DW 24" X 24" | + 1/4" | 3 | 4 | 20 |
---
|
|
|
| WB-DW 24" X 36" | + 1/4" | 5 | 5 | 27 |
---
|
|
|
| WB-DW 24" X 48" | + 1/4" | 7 | 6 | 37 |
---
|
|
|
| WB-DW 30" X 30" | + 1/4" | 5 | 5 | 29 |
---
|
|
|
| WB-DW 30" X 36" | + 1/4" | 5 | 5 | 31 |
---
|
|
|
| WB-DW 36" X 36" | + 1/4" | 5 | 7 | 42 |
---
|
|
