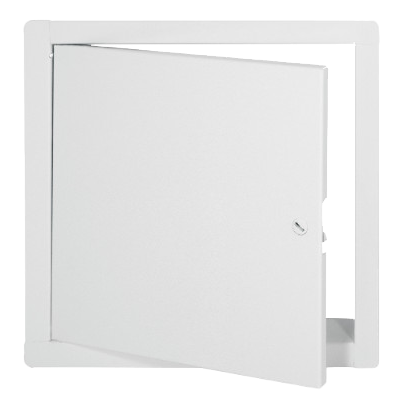

WB-Basic Access Door
Vendor: The Williams Brothers Corp
FEATURES
- Door and Trim - 18 ga. satin coat galvanized steel
- Return Frame - 18 ga. satin coat galvanized steel
- Hinge - Pin hinge top and bottom. Allows opening to 165°.
Piano hinge on doors larger than 24" x 24" - Latch - Flush, stainless steel cam operated with screwdriver. Latches are positioned opposite hinge as well as top and bottom on larger sizes.
- Finish - White powder coat paintable finish
Options
(at extra cost)
- Key cylinder lock with key (code 151)
- Stainless Steel #304 or #316 (#4 satin finish)
Files to download
Last Modified: 2026-01-07
Share
Product Variations
| SKU | Door Size | Wall Opening | Hinges | Cam Latch | Weight (lbs) | QTY | Add to Cart |
|---|---|---|---|---|---|---|---|
| BS 8" X 8" | + 1/4" | - | 1 | 3 |
|
||
| BS 10" X 10" | + 1/4" | - | 1 | 4 |
|
||
| BS 12" X 12" | + 1/4" | - | 1 | 5 |
|
||
| BS 14" X 14" | + 1/4" | - | 3 | 6.25 |
|
||
| BS 16" X 16" | + 1/4" | - | 3 | 7.33 |
|
||
| BS 18" X 18" | + 1/4" | - | 3 | 11 |
|
||
| BS 22" X 22" | + 1/4" | - | 4 | 15 |
|
||
| BS 24" X 24" | + 1/4" | - | 4 | 17 |
|
