UF-5000
FEATURES

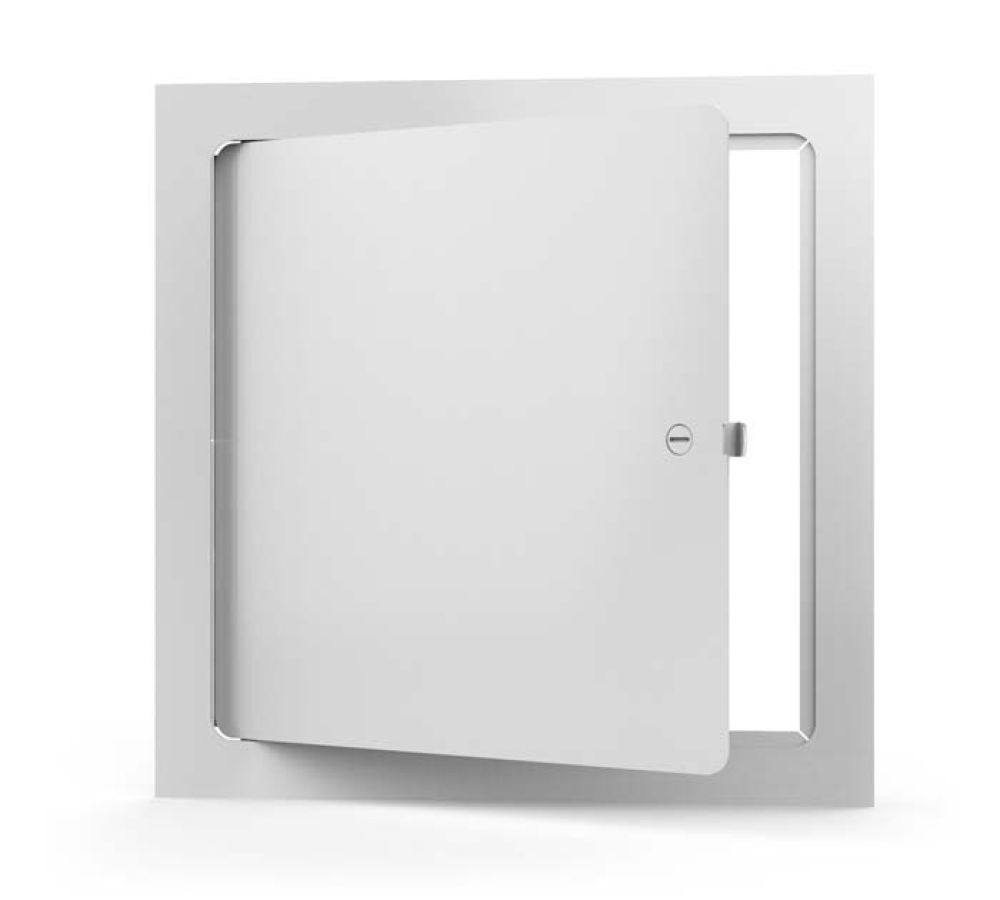

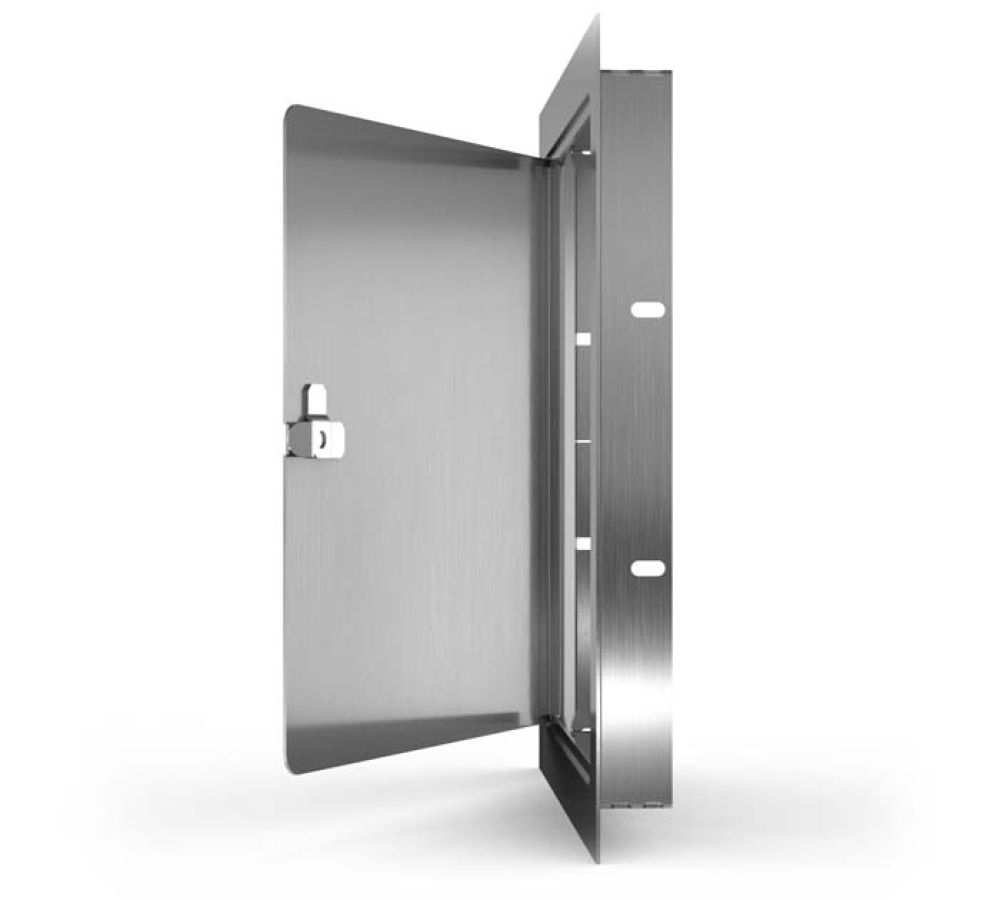

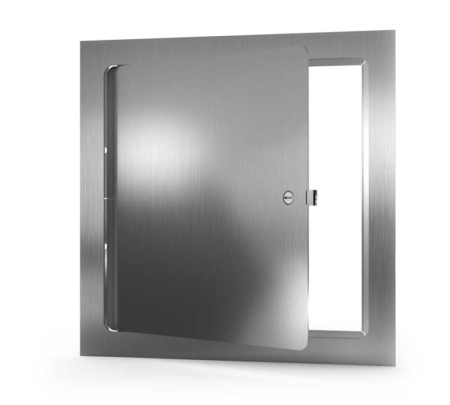

The Acudor UF-5000 is a universal flush, metal access door for walls and ceilings. This door has been designed for installatio
ADDITIONAL INFORMATION

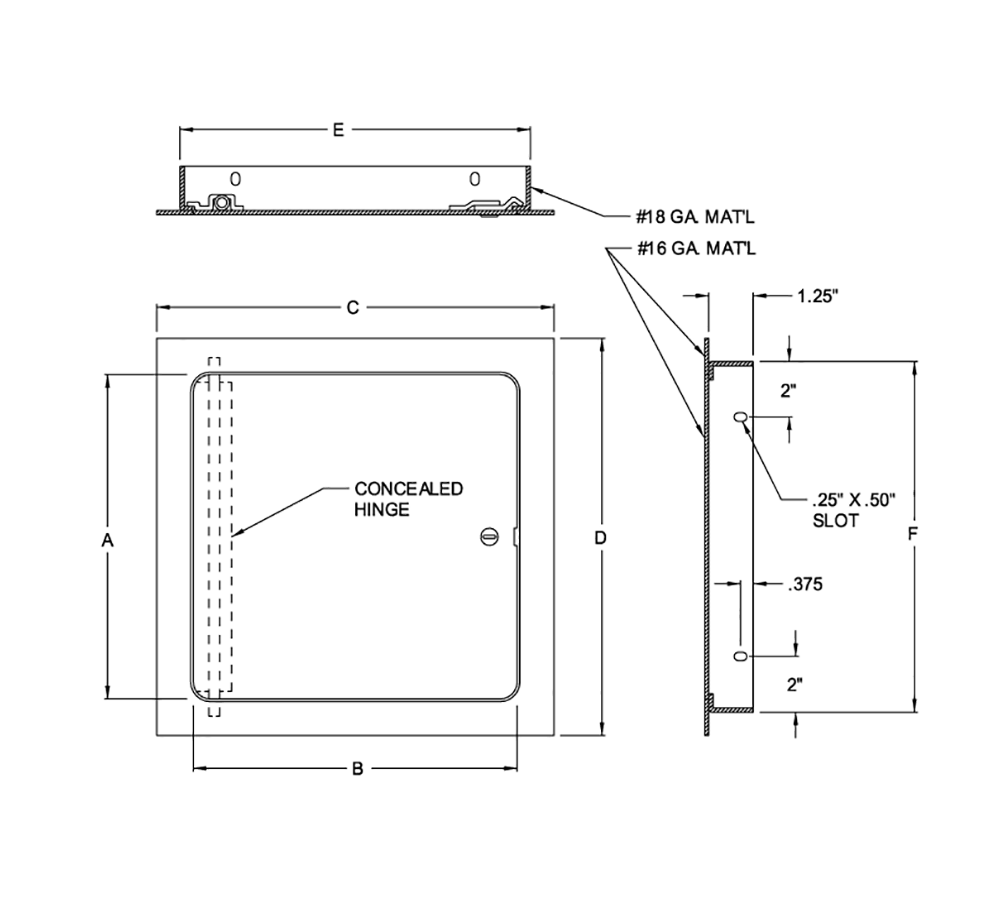

- Material: Up to 16” X 16” - 16 gauge, 18 gauge mounting frame, over 16” X 16” - 14 gauge door, 16 gauge mounting frame
- Door: Flush to frame with rounded safety corners
- Mounting Frame: One piece outer flange welded to mounting frame
- Hinge: Continuous, concealed
- Latch: Stainless Steel screwdriver operated cam latch
- Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch, torx head with security pin
- Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Files to download
Last Modified: 2025-05-27
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| 55100006 | UF 5000 | 6 X 6 (152 x 152) |
$30.00
|
|
|
| 55100008 | UF 5000 | 8 x 8 (203 x 203) |
$30.00
|
|
|
| Special Order | UF 5000 | 8 x 12 (203 X 305) |
$40.00
|
|
|
| 55100010 | UF 5000 | 10 x 10 (254 X 254) |
$37.00
|
|
|
| 55100012 | UF 5000 | 12 x 12 (305 X 305) |
$32.00
|
|
|
| Special Order | UF 5000 | 12 x 16 (305 X 406) |
$63.00
|
|
|
| Special Order | UF 5000 | 12 x 18 (305 X 457) |
$63.00
|
|
|
| Special Order | UF 5000 | 12 x 24 (305 X 610) |
$68.00
|
|
|
| 55210014 | UF 5000 | 14 x 14 (356 X 356) |
$56.00
|
|
|
| 55225016 | UF 5000 | 16 x 16 (406 X 406) |
$59.00
|
|
|
| Special Order | UF 5000 | 16 x 24 (406 X 610) |
$86.00
|
|
|
| 55300018 | UF 5000 | 18 x 18 (457 X 457) |
$71.00
|
|
|
| Special Order | UF 5000 | 18 x 24 (457 X 610) |
$90.00
|
|
|
| 55500020 | UF 5000 | 20 x 20 (508 X 508) |
$126.00
|
|
|
| Special Order | UF 5000 | 22 x 22 (560 X 560) |
$95.00
|
|
|
| Special Order | UF 5000 | 22 x 30 (560 X 762) |
$158.00
|
|
|
| Special Order | UF 5000 | 22 x 36 (560 X 914) |
$169.00
|
|
|
| 55500024 | UF 5000 | 24 x 24 (610 X 610) |
$91.00
|
|
|
| Special Order | UF 5000 | 24 x 30 (610 X 762) |
$160.00
|
|
|
| Special Order | UF 5000 | 24 x 36 (610 X 914) |
$174.00
|
|
|
| Special Order | UF 5000 | 24 x 48 (610 X 1220) |
$270.00
|
|
|
| Special Order | UF 5000 | 30 x 30 (762 X 762) |
$187.00
|
|
|
| 55535036 | UF 5000 | 36 x 36 (914 X 914) |
$228.00
|
|
|
| Special Order | UF 5000 | 36 x 48 (914 X 1220) |
---
|
|
|
| Special Order | UF 5000 | 48 x 48 (1220 X 1220) |
$1073.00
|
|
Note: Wall or ceiling opening is nominal door size + 3/8” ( 9 mm)
