ED-2002
FEATURES

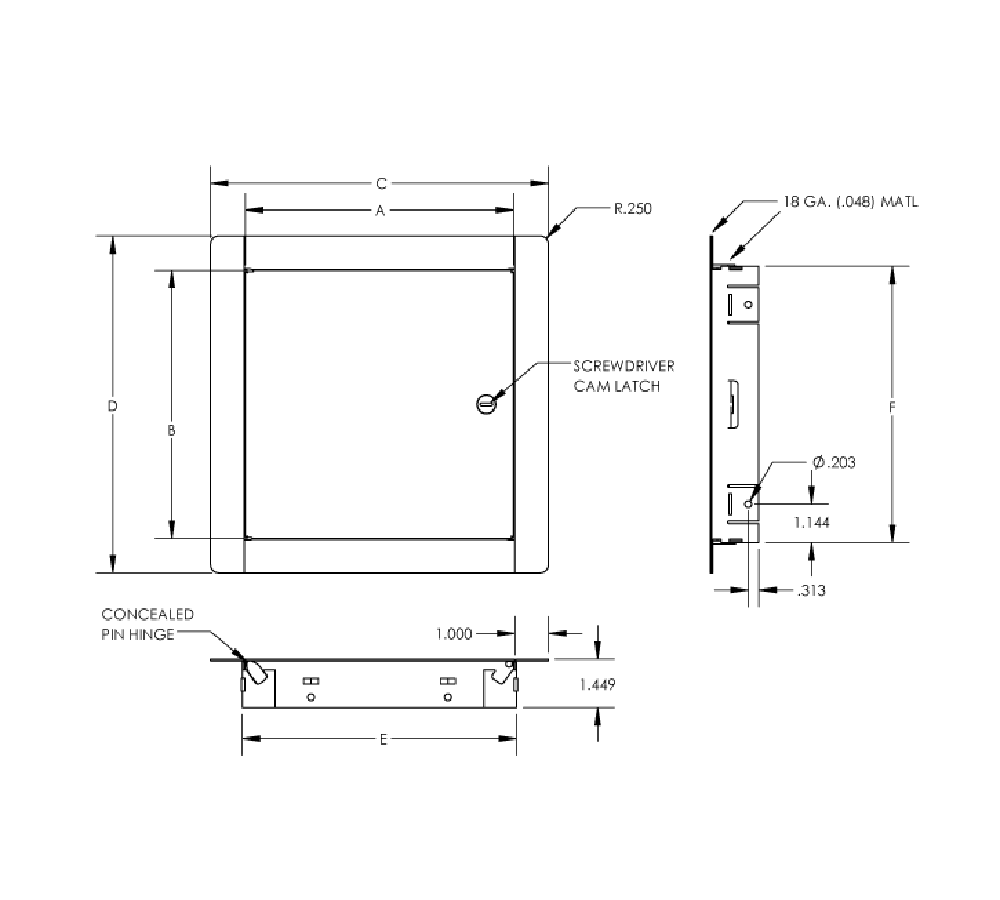

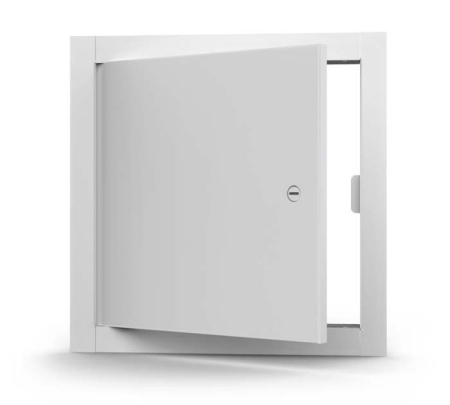

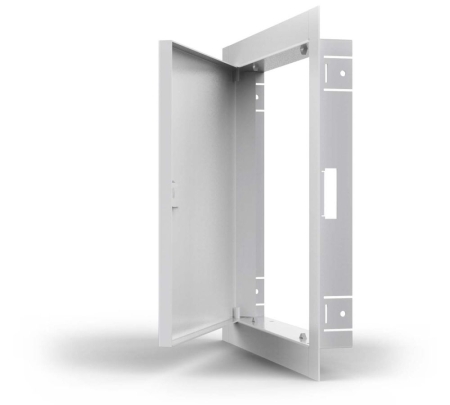

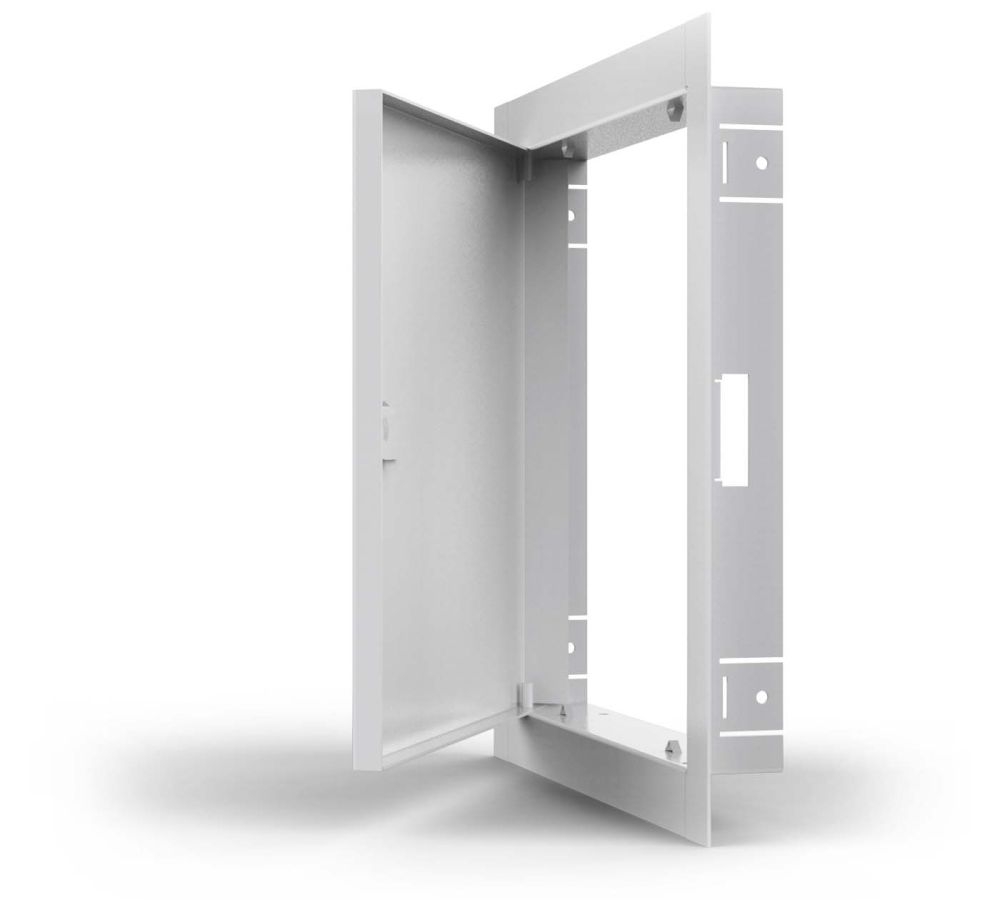

The Acudor ED-2002 is a flush, metal access door for installation in Drywall, Plaster, Masonr
ADDITIONAL INFORMATION
Material: 18 gauge steel door and frame
Door: Flush to frame with reinforced edges

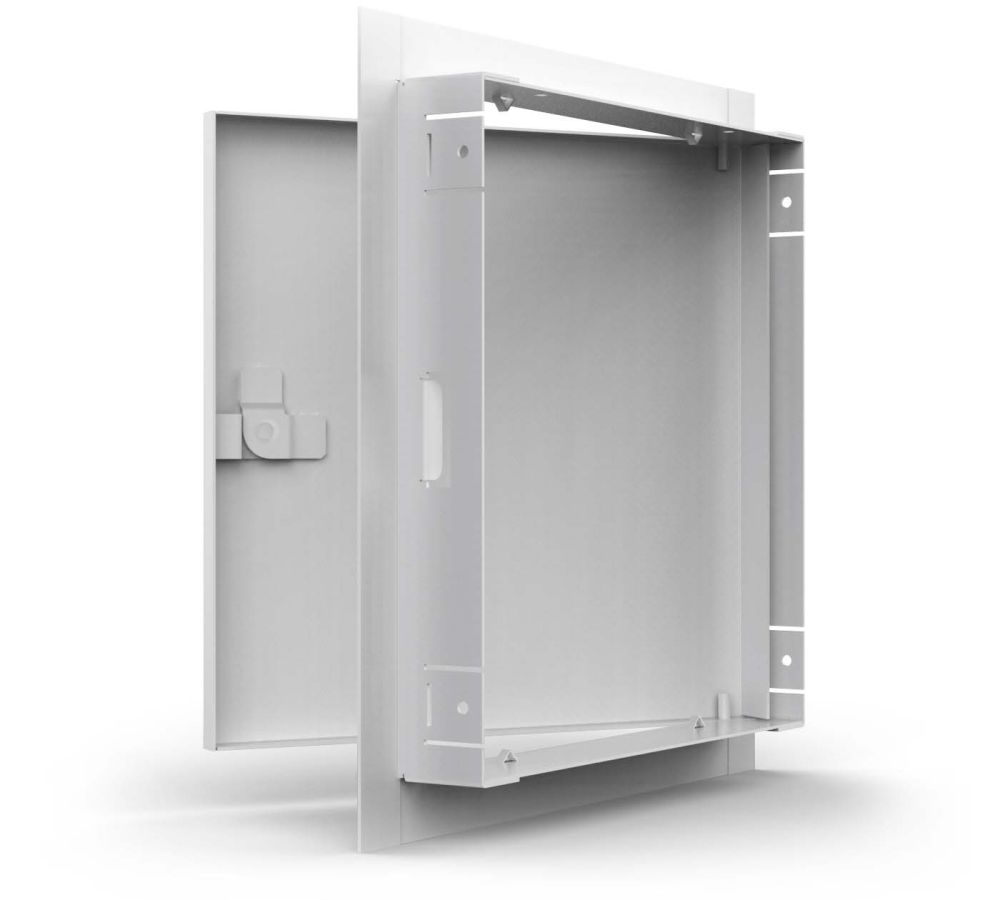

Mounting Frame: 1” wide outside flange with 1 7/16” deep mounting Frame: Knock over mounting tabs provided on 6x6, 8x8, 10x10 and 12x12
Hinge: Concealed Hinge Pin
Latch: Stainless Steel Slotted Screwdriver Cam Latch
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Files to download
Last Modified: 2025-04-21
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| - | ED-2002 | 6 X 6 (152 X 152) |
$16.00
|
|
|
| - | ED-2002 | 8 X 8 (203 X 203) |
$17.00
|
|
|
| - | ED-2002 | 10 X 10 (254 X 254) |
$18.00
|
|
|
| - | ED-2002 | 12 X 12 (305 X 305) |
$25.00
|
|
|
| - | ED-2002 | 14 X 14 (356 X 356) |
$33.00
|
|
|
| - | ED-2002 | 16 X 16 (406 X 406) |
$41.00
|
|
|
| - | ED-2002 | 18 X 18 (457 X 457) |
$47.00
|
|
|
| - | ED-2002 | 20 X 20 (508 X 508) |
$56.00
|
|
|
| - | ED-2002 | 24 X 24 (610 X 610) |
$69.00
|
|
|
| - | ED-2002 | 24 X 36 (610 X 914) |
$144.00
|
|
