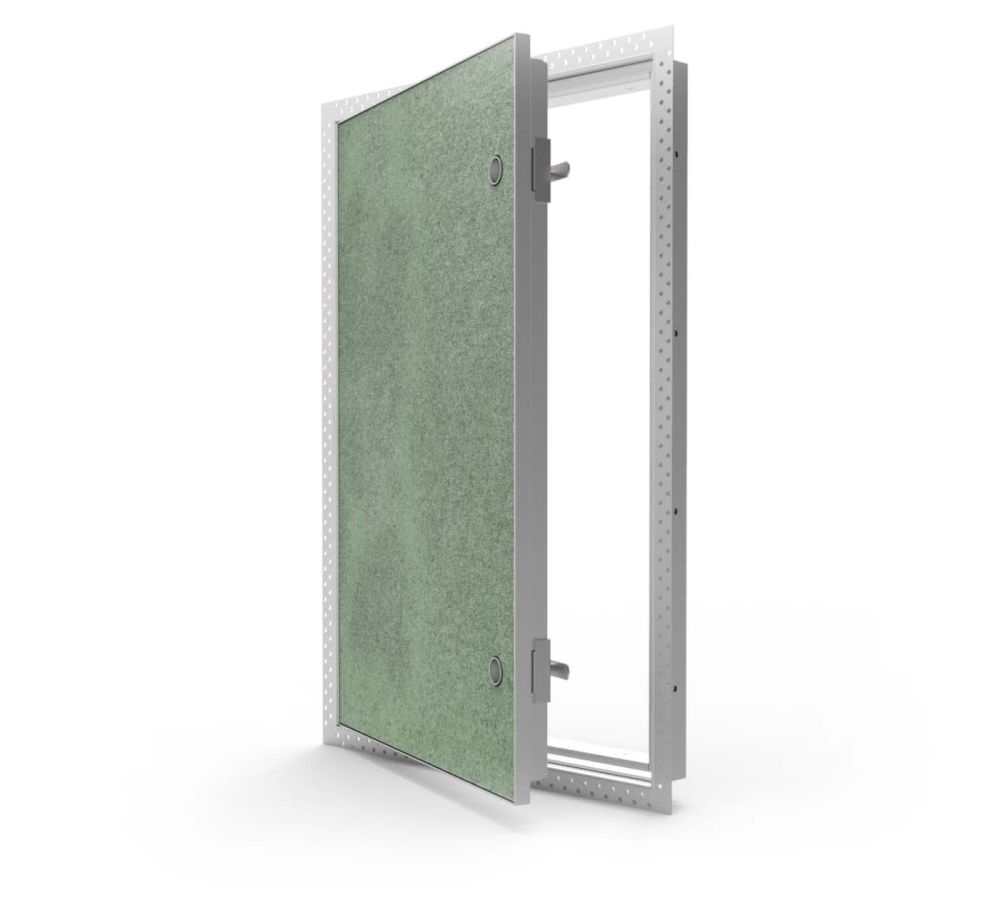

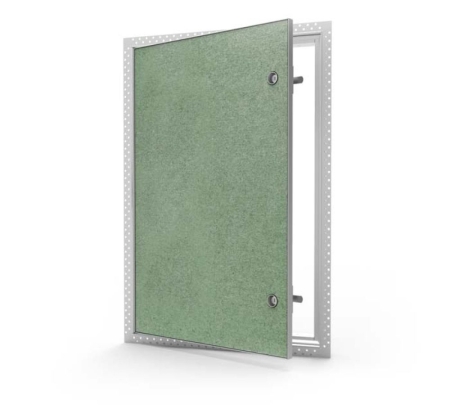

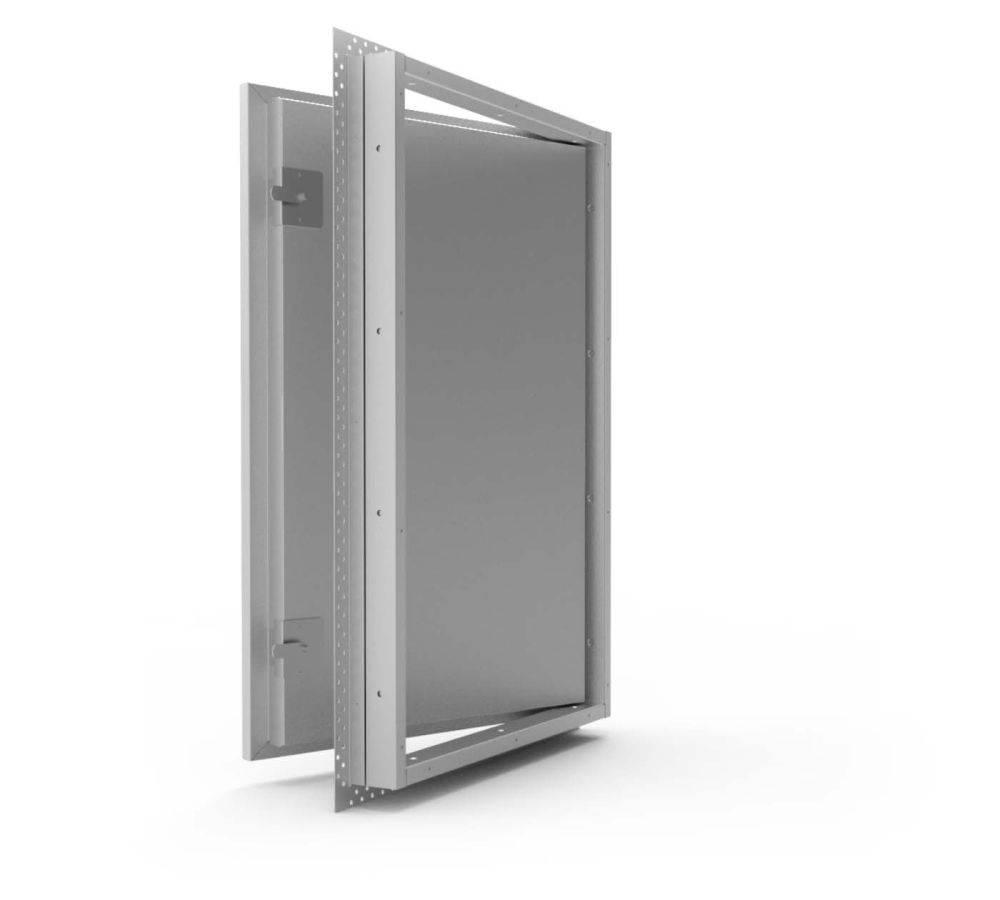

The Acudor ACD-2064 is a recessed, acoustical access door . The ACD-2064 ideal for use on Acoustical walls and ceilings where maintaining STC Rating and OITC Rat
Material: 18 Gauge Satin Coat Steel

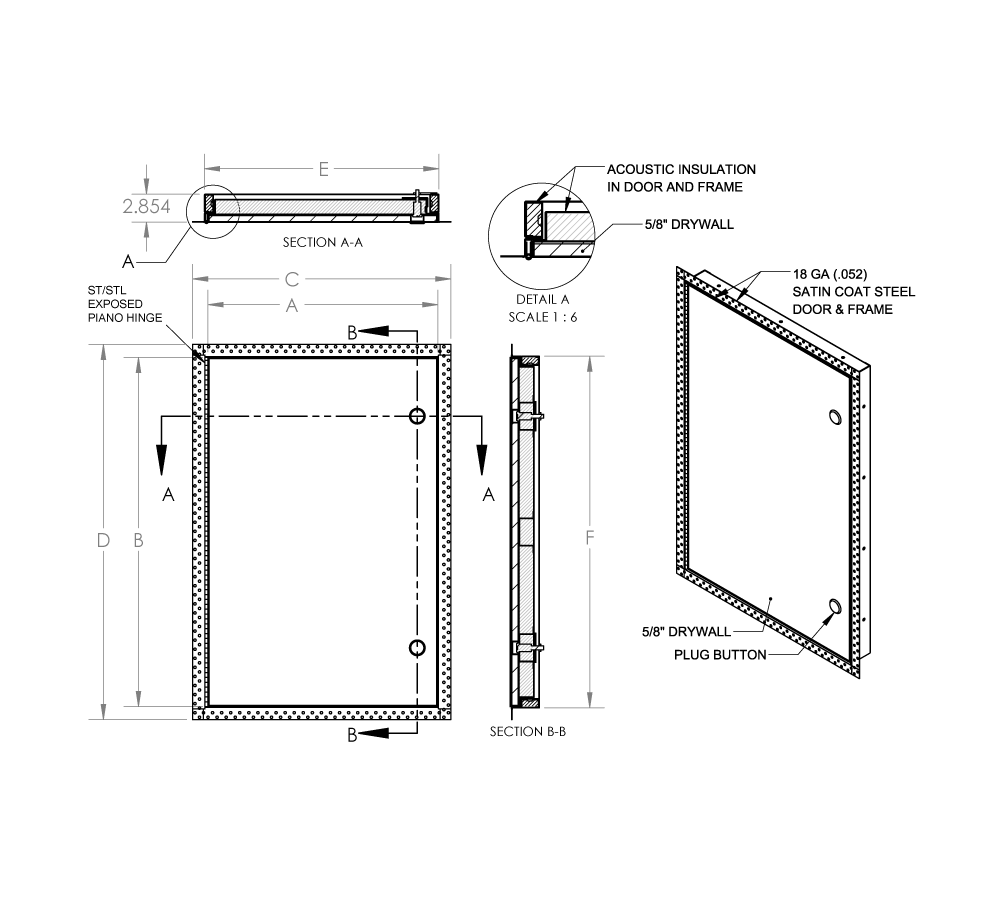

Door: 18 Gauge recessed design filled with 1½” thick acoustic mineral liner, 0.11” thick mineral filled vinyl barrier and fitted with 5/8” thick drywall as finished face
Frame: 18 Gauge, press bent for strength and rigidity, drywall taping bead flange Insulated with 1” thick acoustical mineral liner
Gasket: 1/8” x ½” Neoprene Rubber with Adhesive.
Hinge: Continuous exposed stainless steel piano hinge
Standard Lock: Slotted Compression Latch
Optional Locks: Compression Latch with Hex Head, Hex with security pin, Square, Triangle, Torx head with security pin
Acoustic Rating: This door has been tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16) and certified to STC Rating 64 and OITC Rating 53.
Finish: Satin Coat Steel
Last Modified: 2025-04-24
Share
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | ACD-2064 | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | ACD-2064 | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | ACD-2064 | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | ACD-2064 | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | ACD-2064 | 24 x 36 (610 X 914) |
---
|
|
