AT-5020
FEATURES

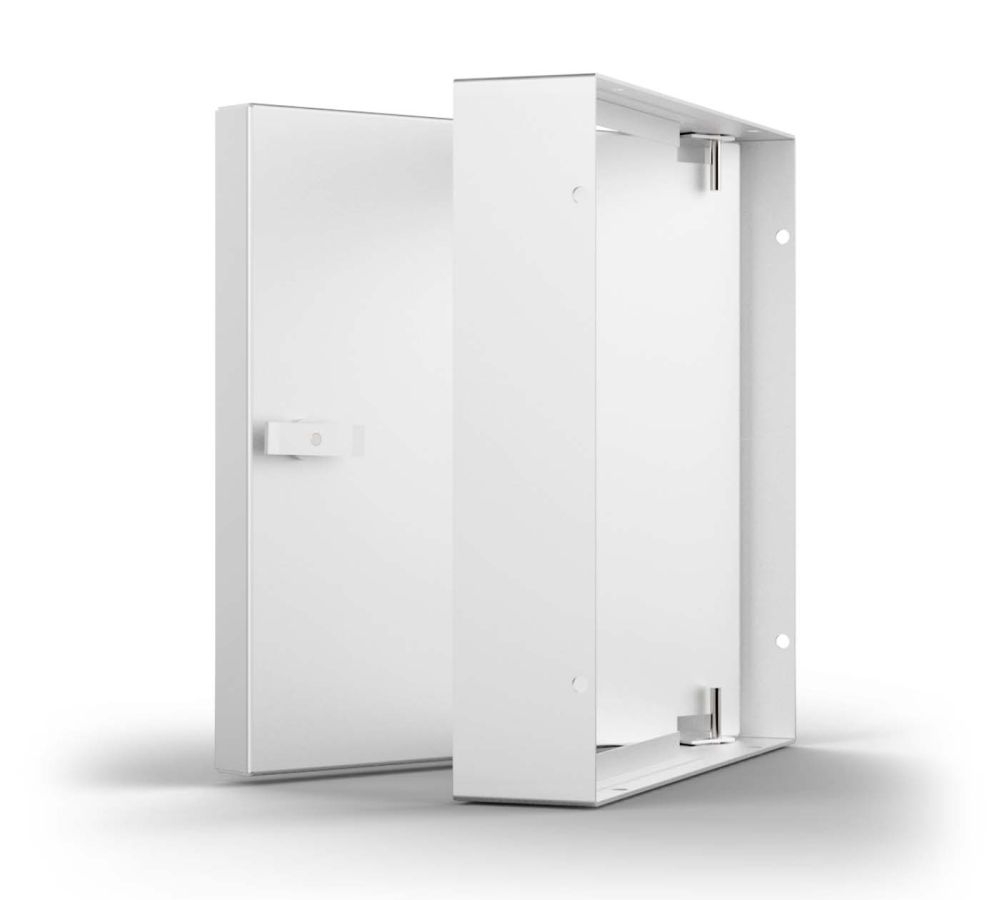

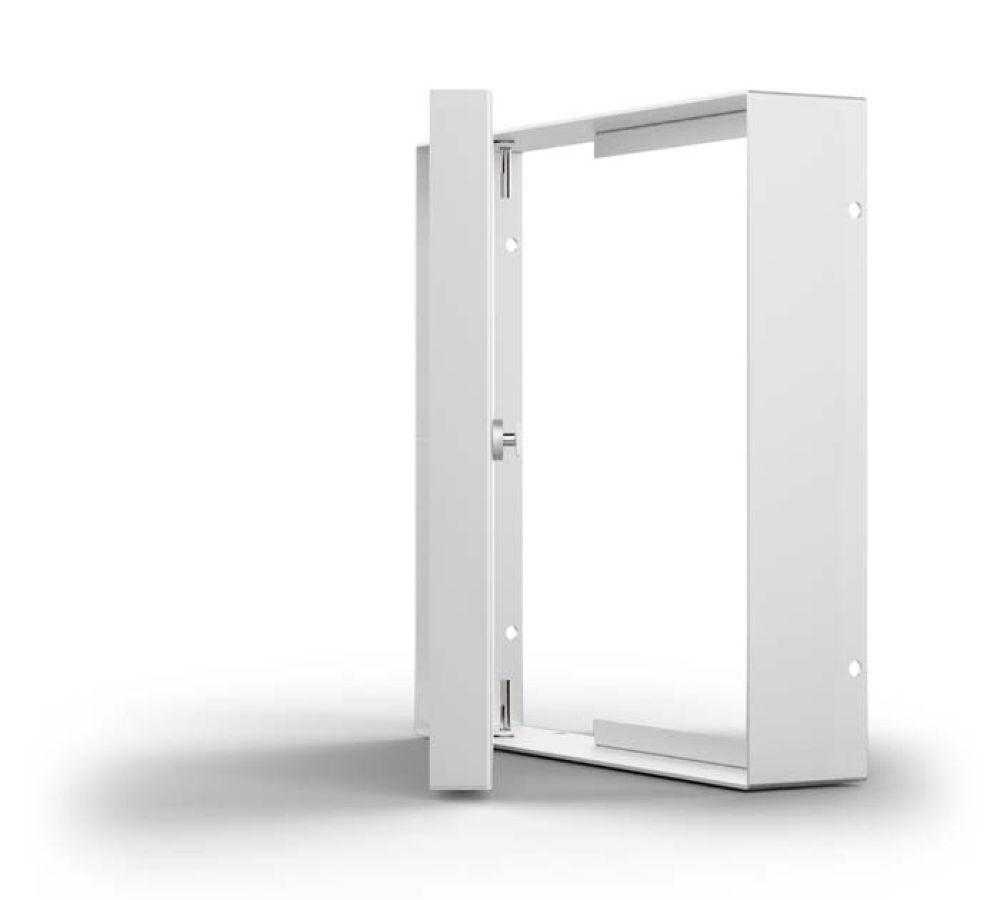

The Acudor AT-5020 is a steel, recessed access door. The AT-5020 is for use in walls or ceilings when it is required to conceal the door panel.
<
ADDITIONAL INFORMATION

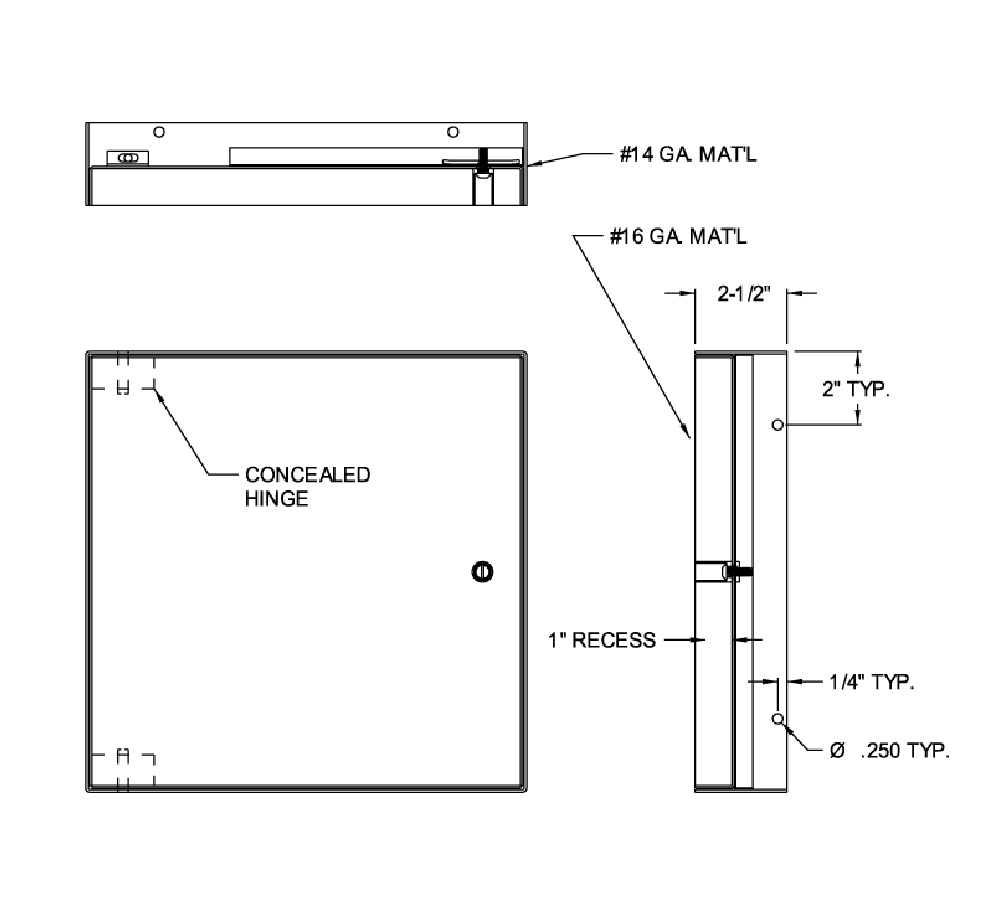

Material: Steel
Door: 16 gauge, Recessed 1"
Frame: 14 gauge
Hinge: Concealed, pivoting rod type, for wall applications over 24”x24” we supply a concealed pin hinge
Standard Latch: Flush to surface, Slotted Screwdriver Cam Latch
Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Files to download
Last Modified: 2025-04-24
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | AT-5020 | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | AT-5020 | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | AT-5020 | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | AT-5020 | 24 x 36 (610 X 914) |
---
|
|
