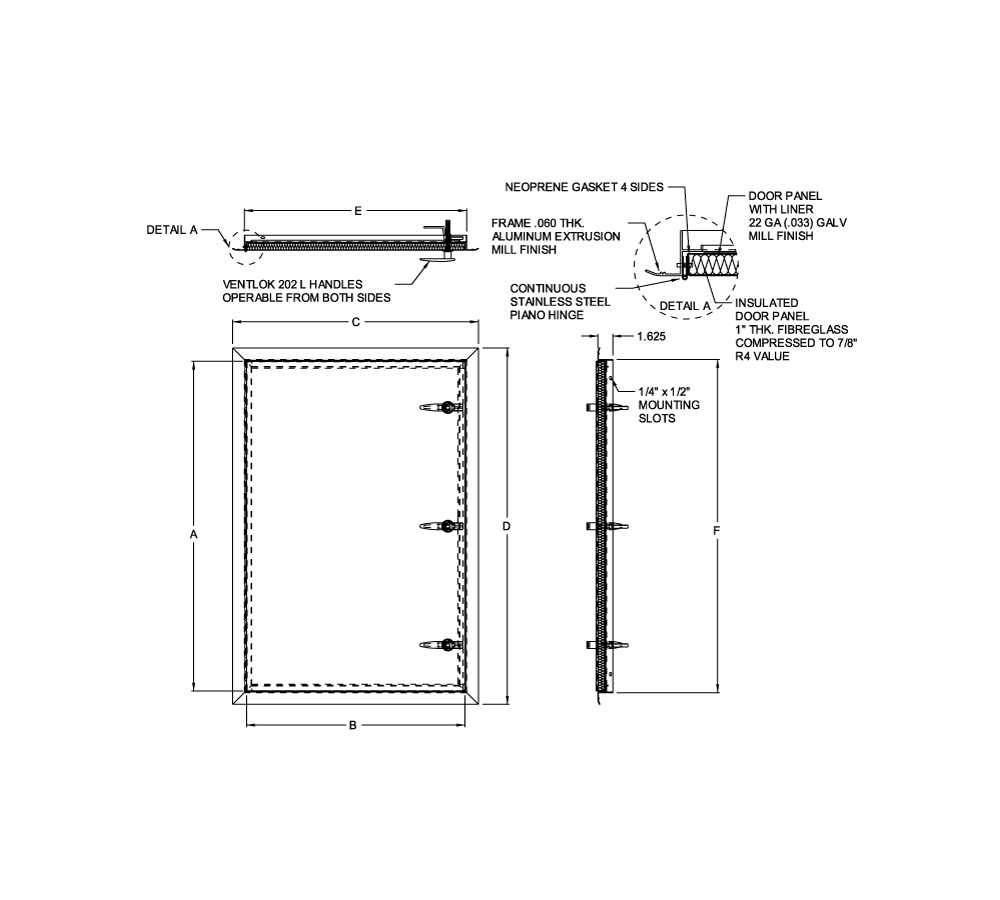

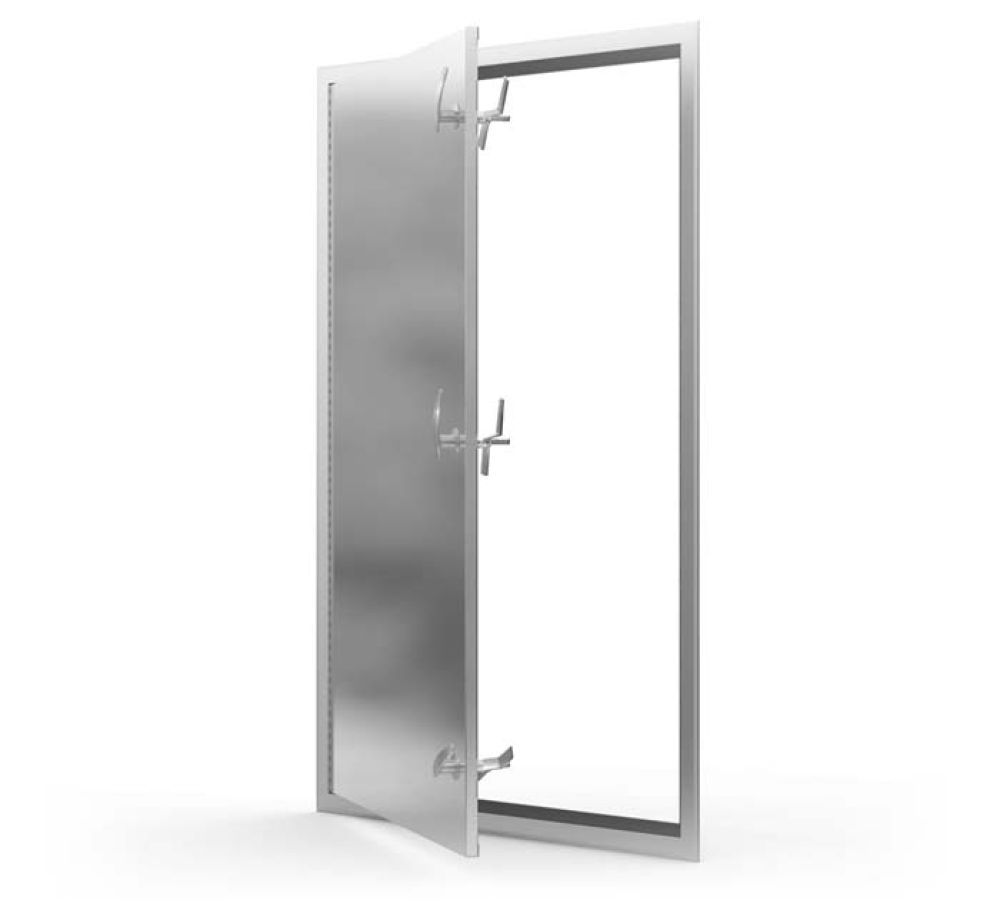

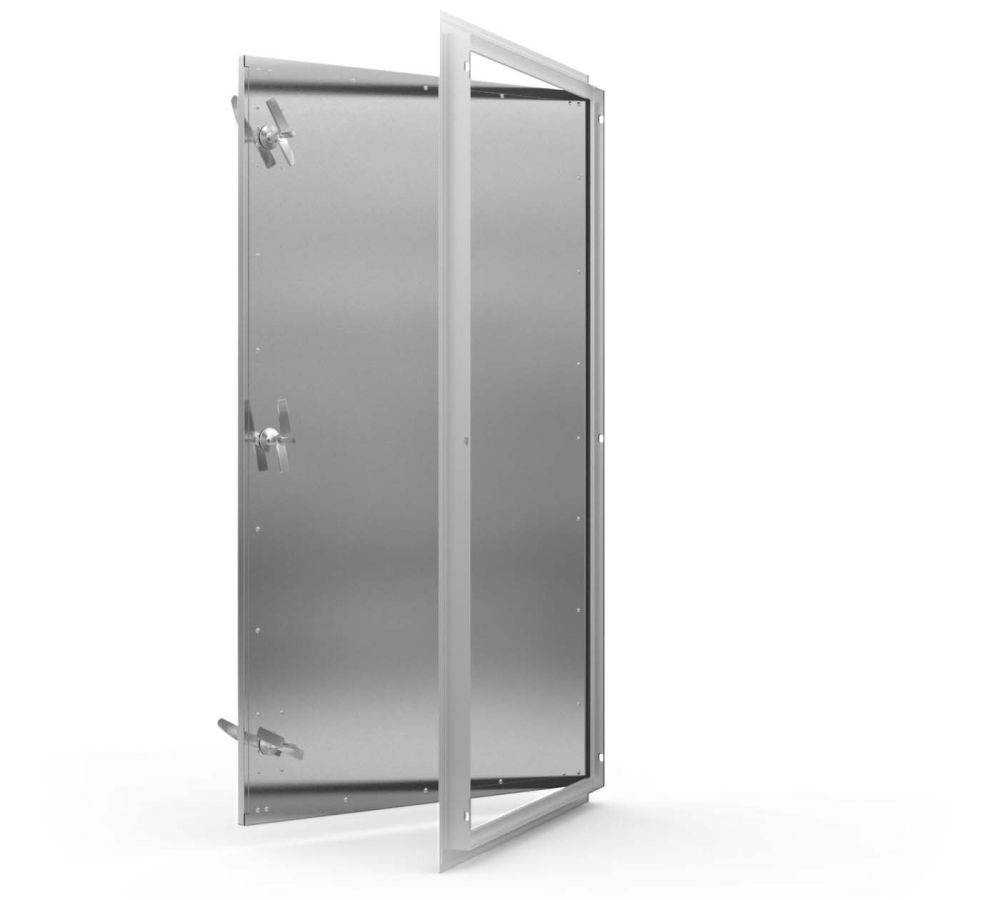

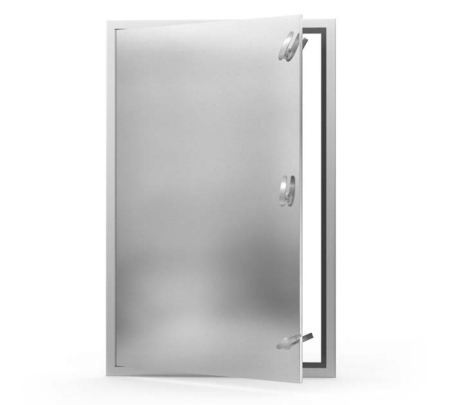

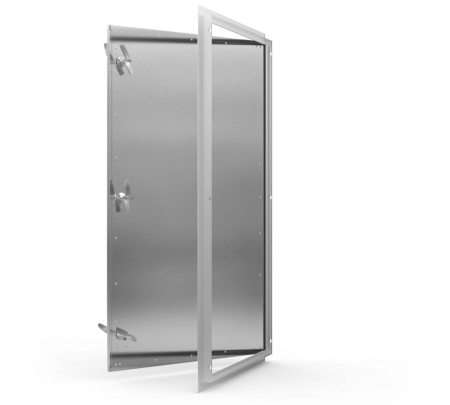

The Acudor WD-8000 is a steel walk through access door. The WD-8000 is designed to provide convenient custom walk through access to work interiors and air handli
Material: Galvanized steel, also available in Aluminum and Stainless Steel
Door: 22 gauge
Mounting Frame: Double panel frame is 1 15/16” wide x 1 1/2” deep extruded aluminum with mitered corners
Gasket: 1/8” thick x 1/2” wide closed cell neoprene gasketing between door and frame
Hinge: Continuous steel piano hinge-opens 180 degrees
Insulation: Door panel filled with 1” thick fiberglass insulation - 4 R value
Standard Latch: Dual acting compression handles-operable from both sides Units 48” high and under to have 2 handles. Units over 48” high to have 3 handles
Finish: Mill finish
Last Modified: 2025-04-24
Share
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | WD-8000 | 24 x 36 (610 X 914) |
---
|
|
|
| Special Order | WD-8000 | 24 x 48 (610 X 1220) |
---
|
|
|
| Special Order | WD-8000 | 24 x 60 (610 X 1524) |
---
|
|
|
| Special Order | WD-8000 | 24 x 72 (610 X 1829) |
---
|
|
|
| Special Order | WD-8000 | 30 x 36 (762 X 914) |
---
|
|
|
| Special Order | WD-8000 | 30 x 48 (762 X 1220) |
---
|
|
|
| Special Order | WD-8000 | 30 x 60 (762 X 1524) |
---
|
|
|
| Special Order | WD-8000 | 30 x 72 (762 X 1829) |
---
|
|
