AP-5010
FEATURES

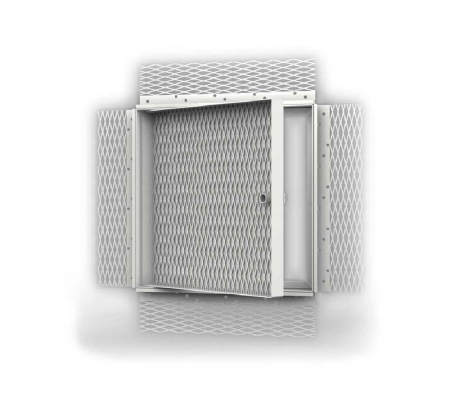

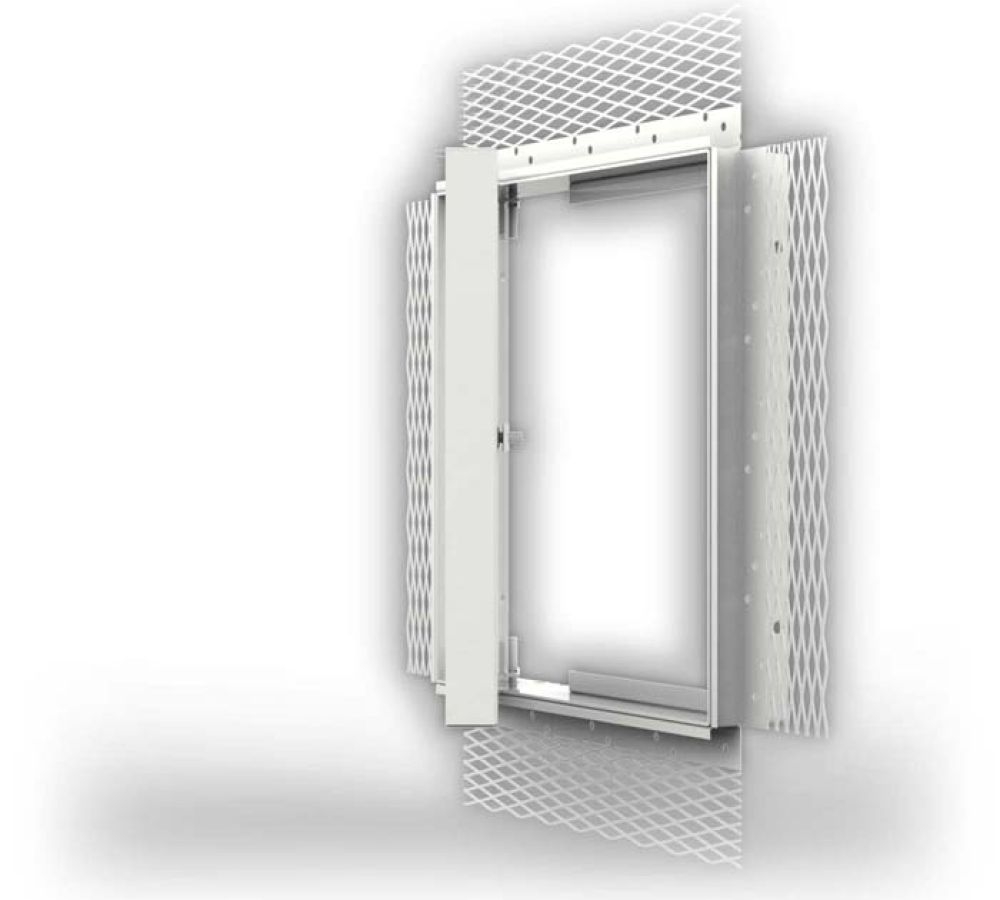

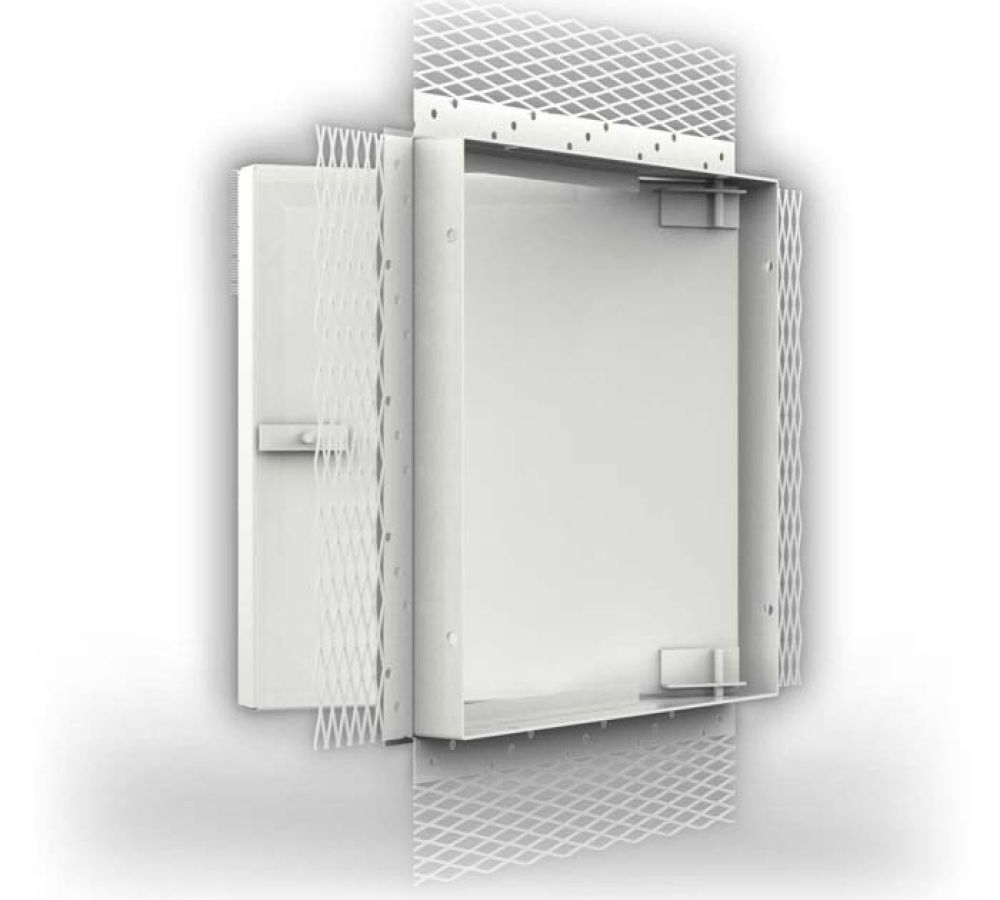

The Acudor AP-5010 Recessed Access door is designed for use in acoustical plaster walls and ceilings
- Recessed 5/8" and is lined with self
ADDITIONAL INFORMATION
Material: Steel

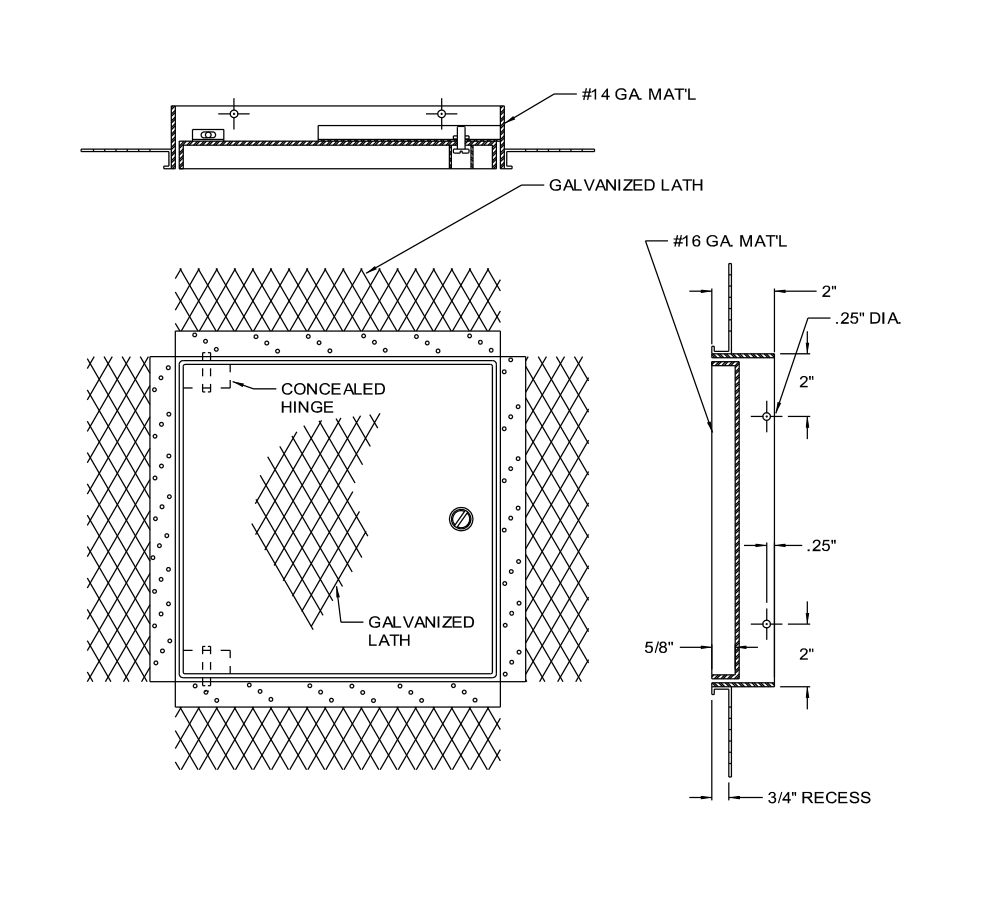

Door: 16 gauge recessed 5/8" lined with self-furring galvanized lath
Frame: 14 gauge expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster
Hinge: Concealed, pivoting rod type. (For wall applications, a continuous exposed piano hinge is suggested.)
Standard Latch: Flush to surface, Slotted Screwdriver Cam Latch
Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Files to download
Last Modified: 2025-04-24
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | AP-5010 | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | AP-5010 | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | AP-5010 | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | AP-5010 | 24 x 36 (610 X 914) |
---
|
|
