TD-5025
FEATURES

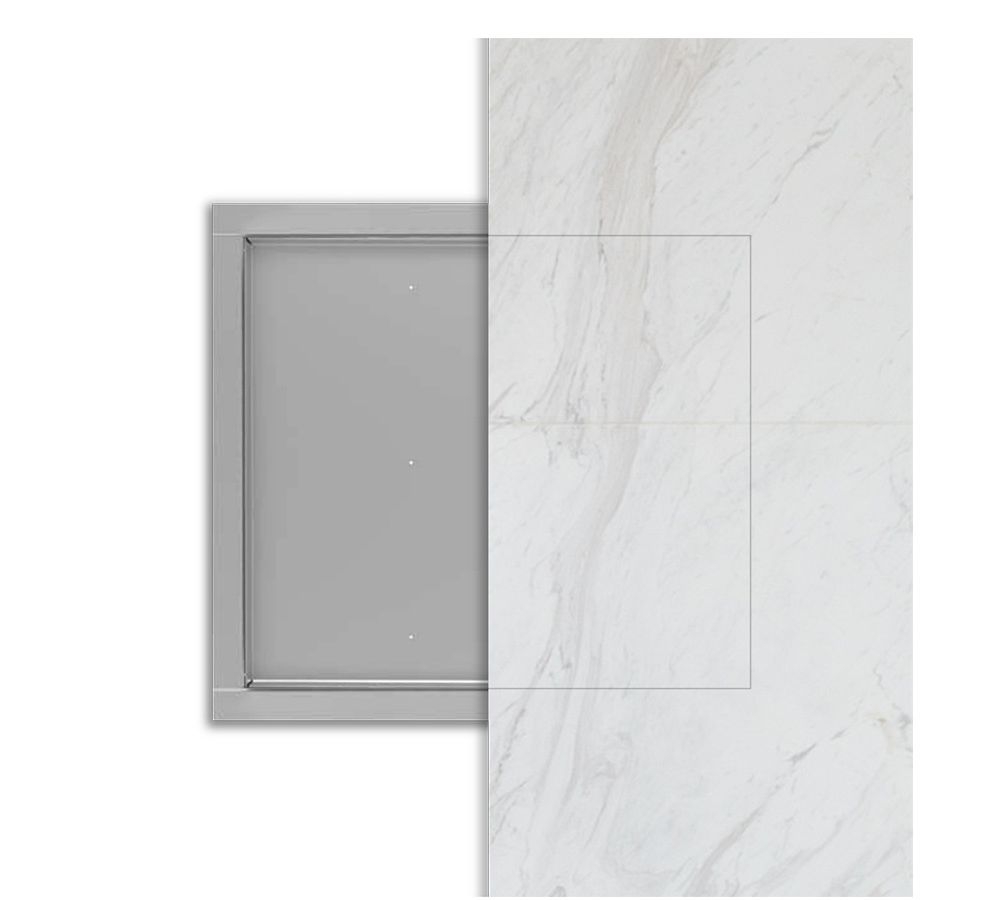

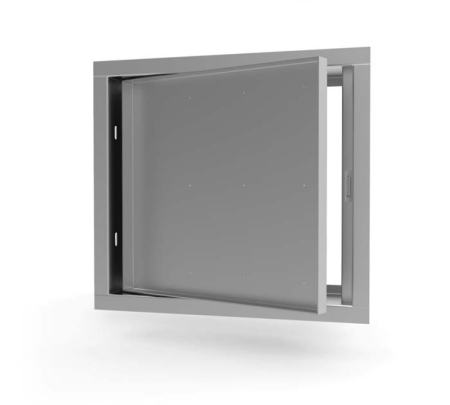

The Acudor TD-5025 is a heavy-duty, recessed access door for tile and marble. The TD-5025 is ideal for use on tiled and marbled walls.
- Do
ADDITIONAL INFORMATION
Material: 16 Ga Satin Coat Steel
Door: 16 Ga, 3/4" recessed tray to accept 5/8” MDF and glue by others
Frame: 16 Ga, press bent for strength and rigidity
Hinge: Continuous concealed piano hinge
Standard Latch: Cam Latch
Optional Latches/Locks: Touch Latch, Magnetic Lock
Finish: Powder coated RAL 9016
Files to download
Last Modified: 2025-04-24
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | TD-5025 | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | TD-5025 | 14 x 14 (356 X 356) |
---
|
|
|
| Special Order | TD-5025 | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | TD-5025 | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | TD-5025 | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | TD-5025 | 24 x 36 (610 X 914) |
---
|
|
