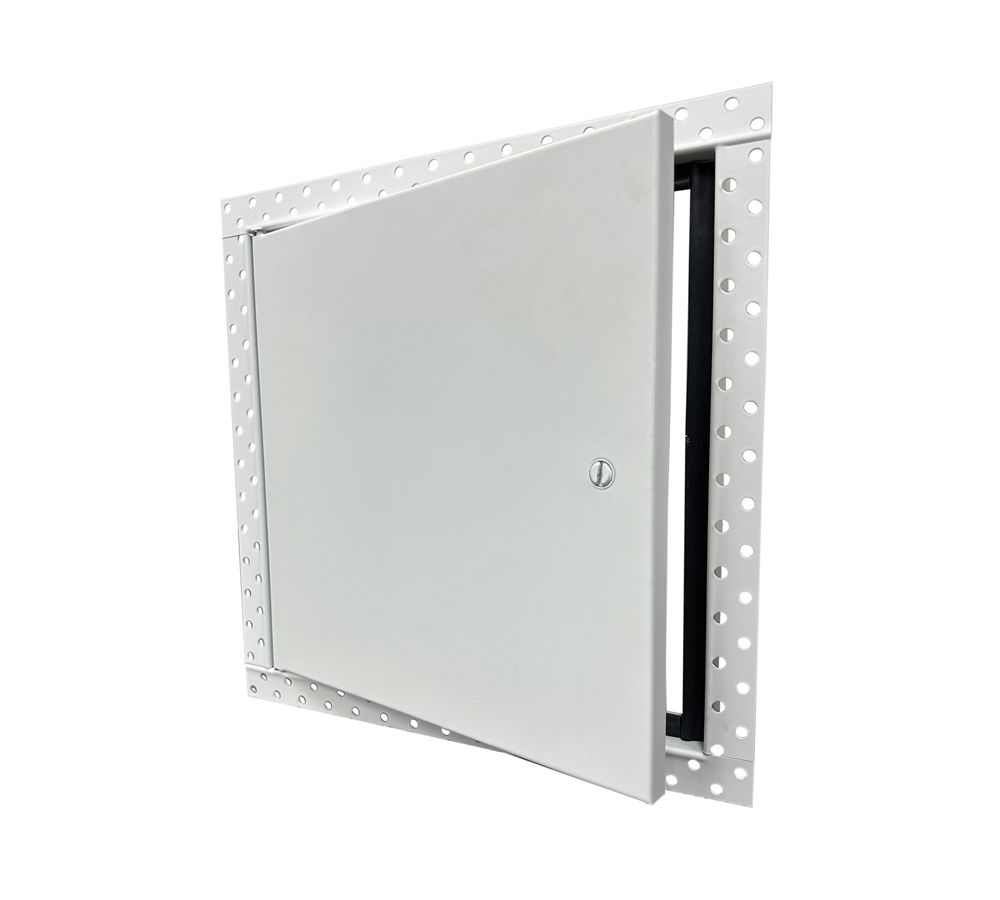

AS-9000-DW
FEATURES
The Acudor AS-9000-DW is designed to provide a gasketed fit in drywall walls and ceilings. This door is commonly used in clean rooms, laboratories, operating roo
ADDITIONAL INFORMATION
Door / Door Frame: Stainless Steel or Carbon Steel: 18 gauge door, 18 gauge mounting frame, flange to be drywall taping bead flange.
Hinge: Concealed
Gasket: Pemko S88 adhesive-backed bulb silicone gasket
Standard Latch: Stainless Steel Slotted Screwdriver Cam Latch
Optional Latches/Locks: Cylinder lock & key, allen head cam latch, spanner head cam latch, torx head with security pin
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Files to download
Last Modified: 2025-04-24
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | AS-9000-DW | 8 x 8 (203 x 203) |
---
|
|
|
| Special Order | AS-9000-DW | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | AS-9000-DW | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | AS-9000-DW | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | AS-9000-DW | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | AS-9000-DW | 24 x 36 (610 X 914) |
---
|
|
