PS-5030
FEATURES

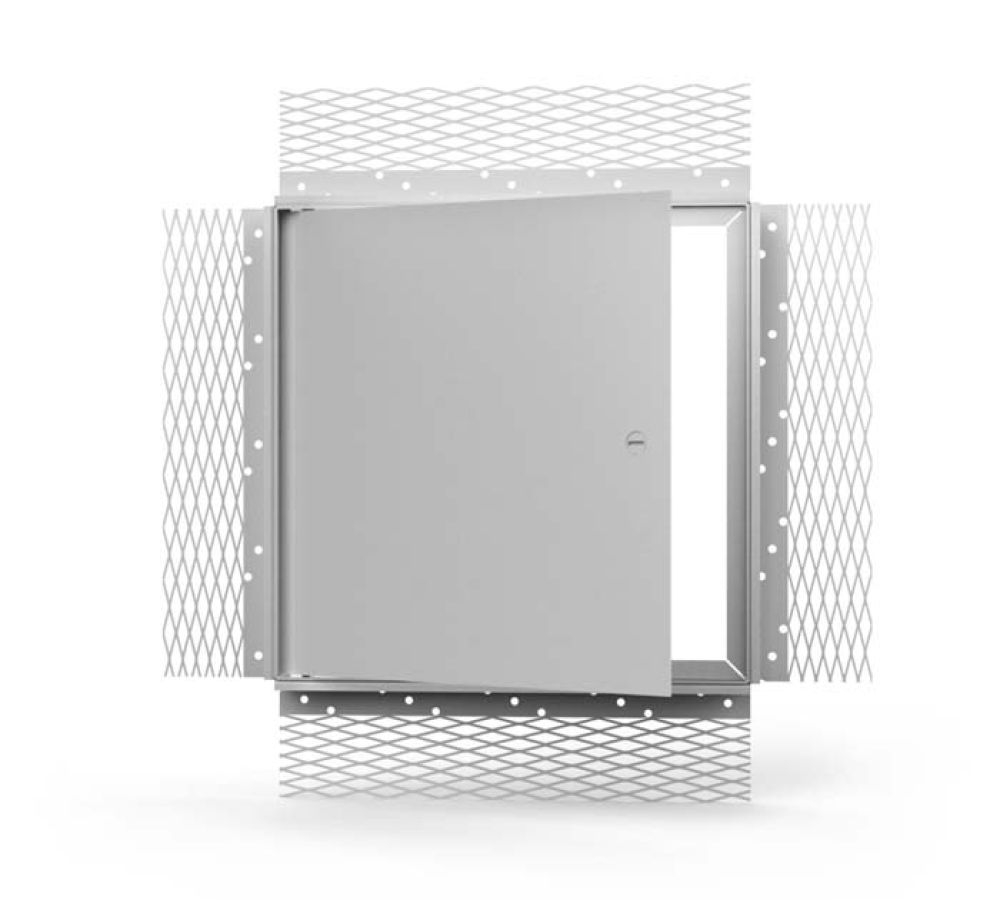

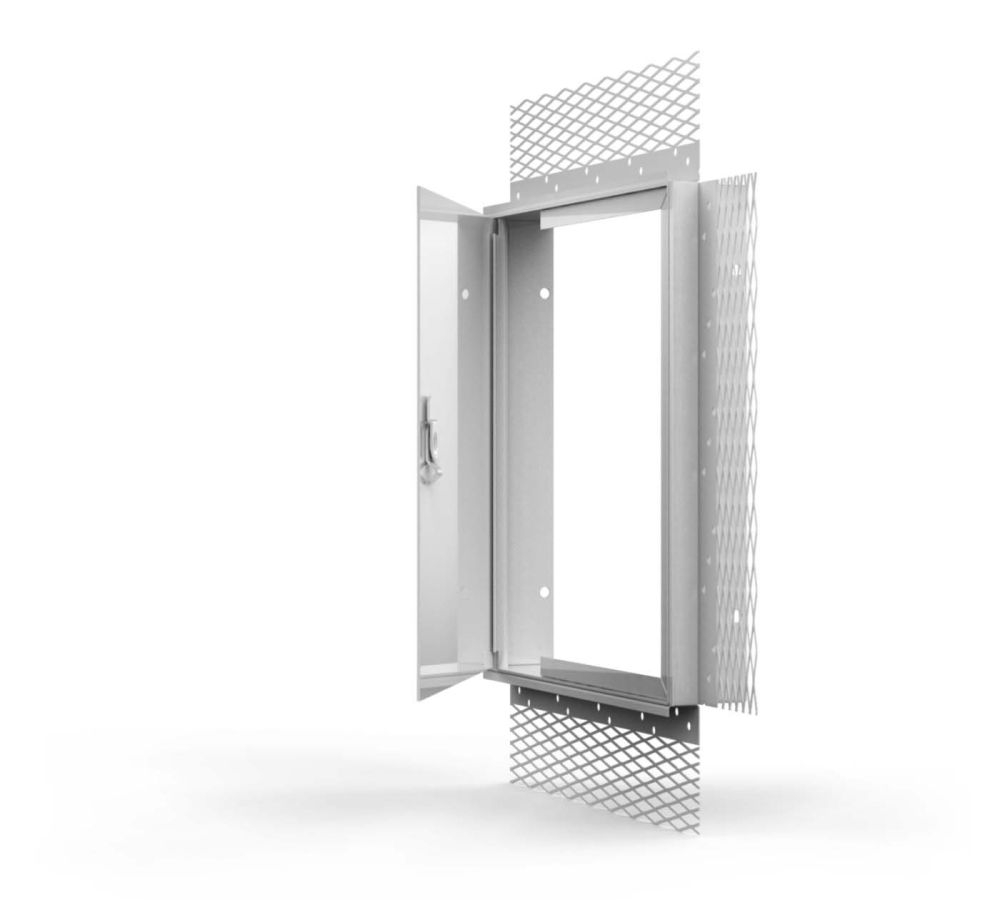

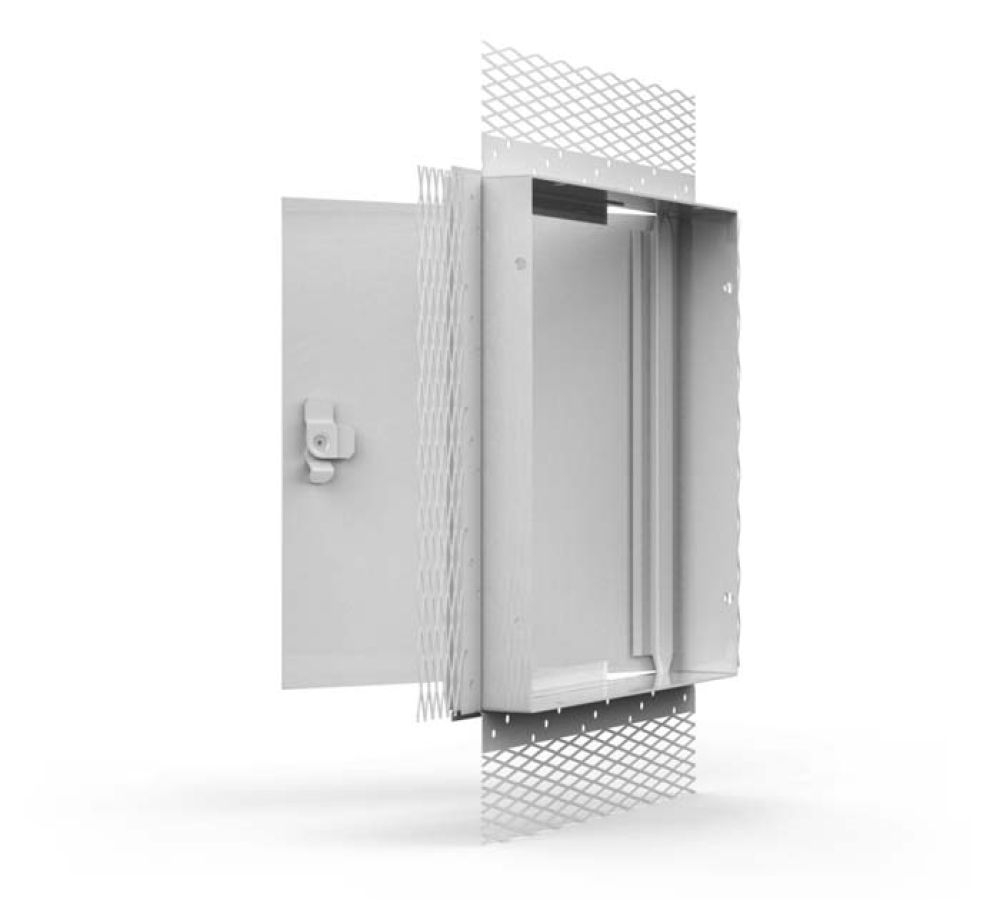

The Acudor PS-5030 is a metal access door designed for installation in plaster walls and ceilings before the plaster is applied.
- Expansio
ADDITIONAL INFORMATION
Material: Stainless Steel
Door / Door Frame: 14 gauge
Mounting Frame: Formed door panel, flanged on four sides, flush to edge of frame expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster
Hinge: Continuous, concealed
Standard Latch: Stainless steel Slotted Screwdriver Cam Latch
Optional Latches/Locks: Cylinder lock & key, allen head cam latch, spanner head cam latch, torx
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Files to download
Last Modified: 2025-04-24
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | PS-5030 | 8 x 8 (203 x 203) |
---
|
|
|
| Special Order | PS-5030 | 10 x 10 (254 X 254) |
---
|
|
|
| Special Order | PS-5030 | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | PS-5030 | 14 x 14 (356 X 356) |
---
|
|
|
| Special Order | PS-5030 | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | PS-5030 | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | PS-5030 | 22 x 22 (559 X 559) |
---
|
|
|
| Special Order | PS-5030 | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | PS-5030 | 24 x 36 (610 X 914) |
---
|
|
