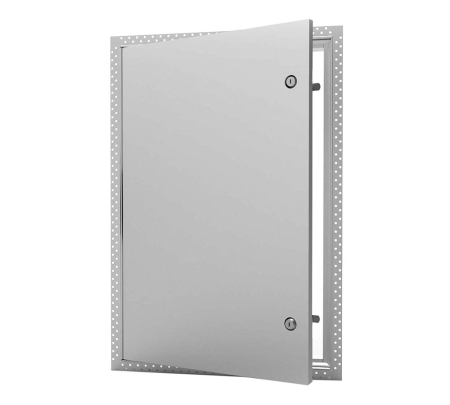

The Acudor ACF-2064-DW is a flush access door that is ideal for use on Acoustical walls and ceilings where maintaining STC Rating (Sound Transmission Class) and
Material: 18 Gauge Satin Coat Steel
Door: 18 Gauge, encapsulated design with 2” thick acoustical mineral liner and 0.11” thick mineral filled vinyl barrier
Frame: 18 Gauge, press bent for strength and rigidity, with 1” wide trim flanges and 1” thick acoustical mineral liner
Gasket: 1/8” x ½” Neoprene Rubber with Adhesive.
Hinge: Continuous exposed stainless steel piano hinge
Standard Lock: Slotted Screwdriver Cam Latch
Optional Locks: Torx head with security pin
Acoustic Rating: This door has been tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16) and certified to STC Rating 64 and OITC Rating 54.
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Last Modified: 2025-04-24
Share
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | ACF-2064-DW | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | ACF-2064-DW | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | ACF-2064-DW | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | ACF-2064-DW | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | ACF-2064-DW | 24 x 36 (610 X 914) |
---
|
|
