AL-9500
FEATURES

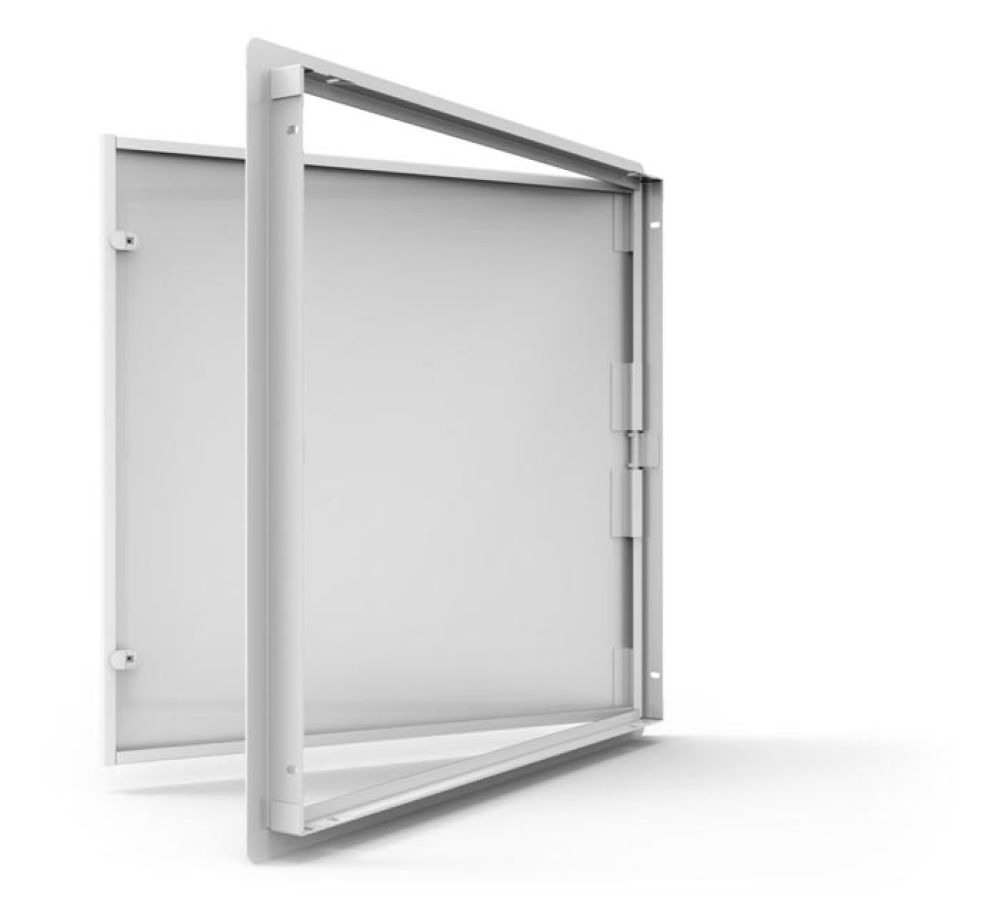

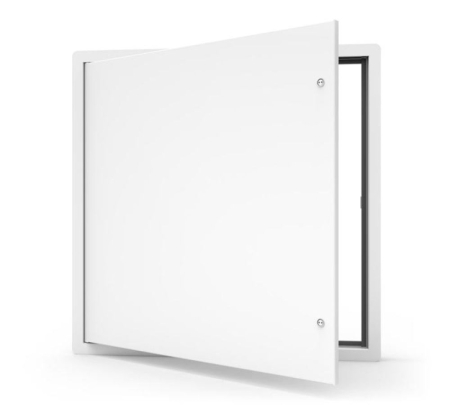

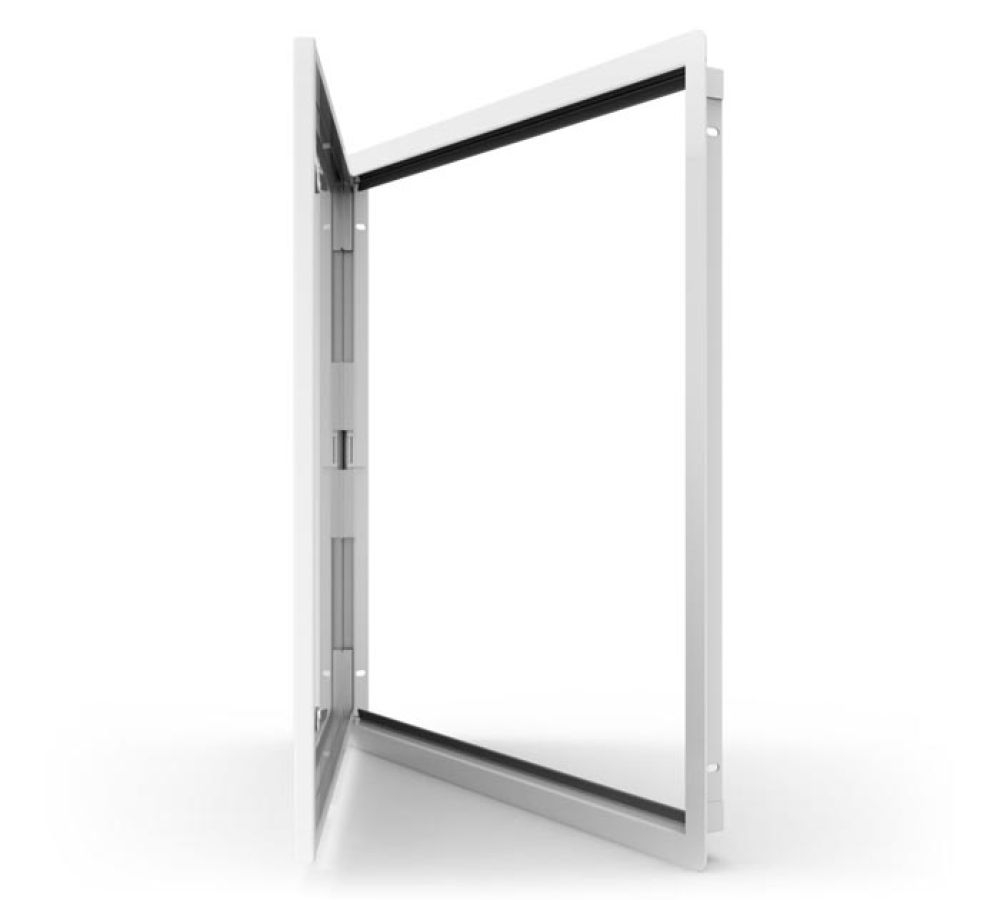

The Acudor AL-9500 is a steel access door designed for Anti-Ligature applications. The AL-9500 is commonly used in prisons, correctional facilities, psychiatric
ADDITIONAL INFORMATION

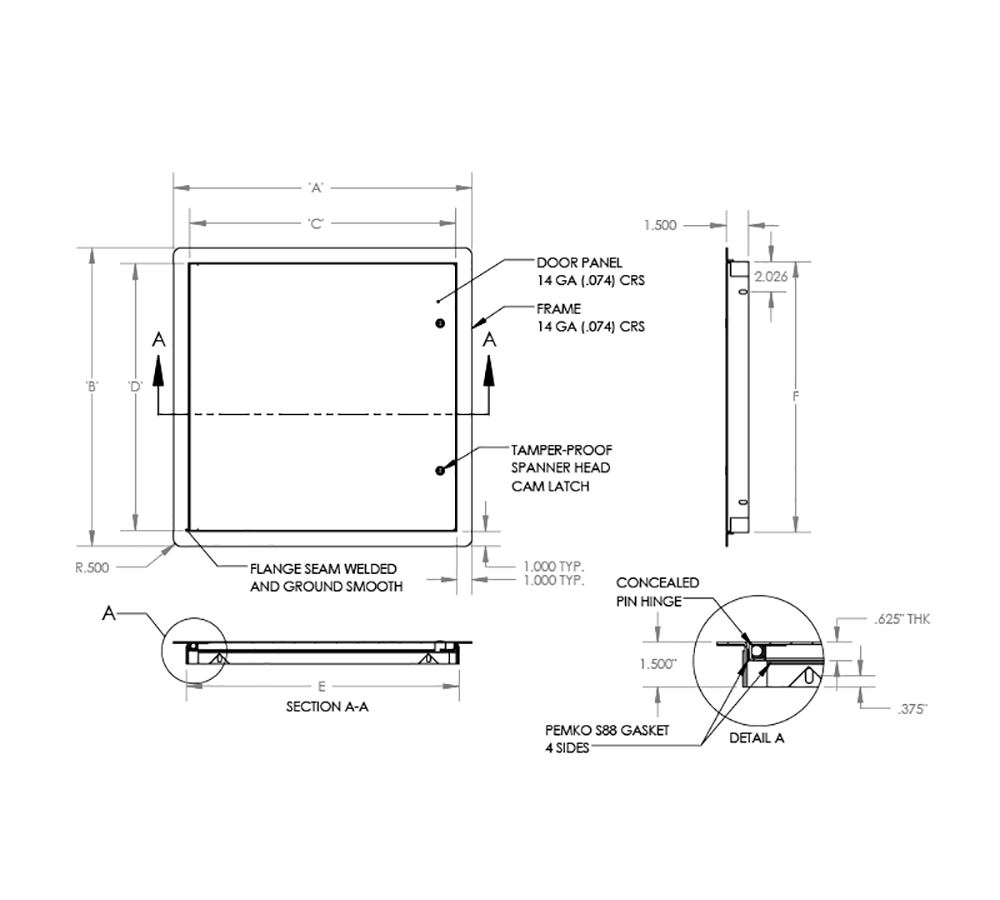

Door / Door Frame: Steel: 14 gauge door, 14 gauge mounting frame, flange to be 1” wide. Also available: Stainless Steel.
Hinge: Concealed
Gasket: Pemko S88 adhesive-backed bulb silicone gasket
Standard Latch: Tamper-proof spanner head cam latch
Optional Latches/Locks: Torx head, Cylinder Lock, Mortise Lock, Torx head with security pin
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
Files to download
Last Modified: 2025-04-24
Share
Specifications
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | AL-9500 | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | AL-9500 | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | AL-9500 | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | AL-9500 | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | AL-9500 | 24 x 36 (610 X 914) |
---
|
|
