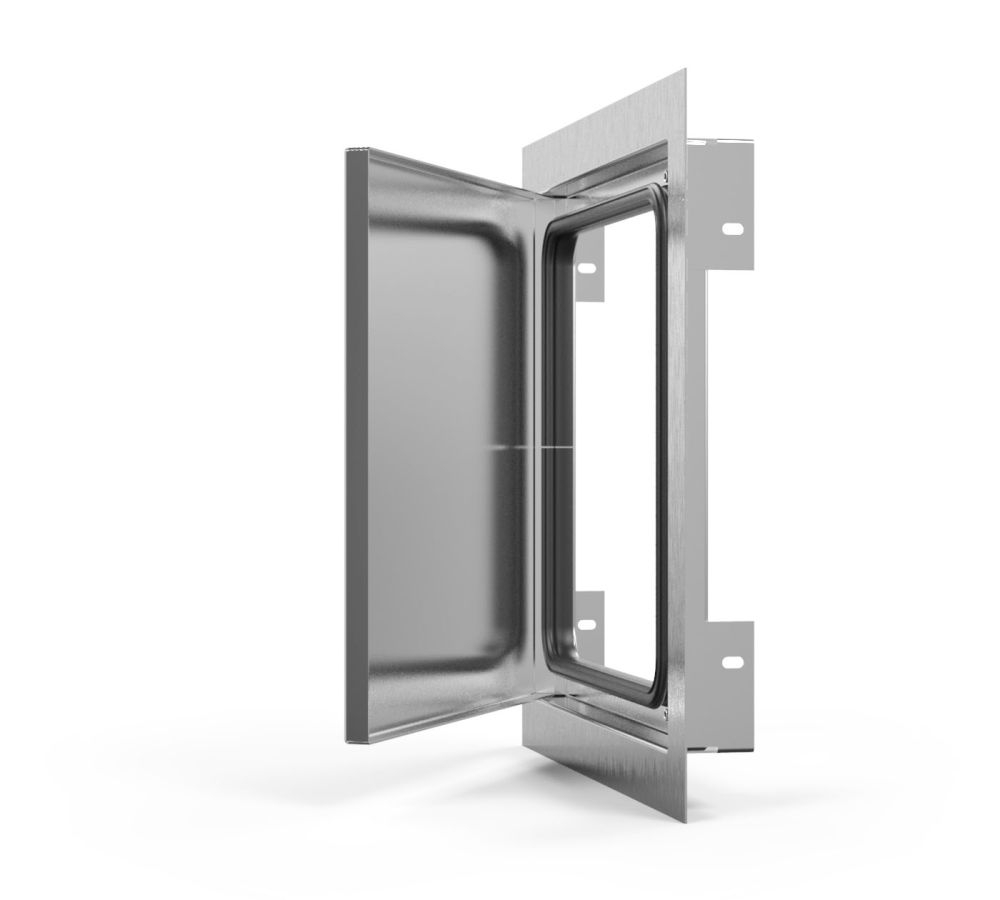

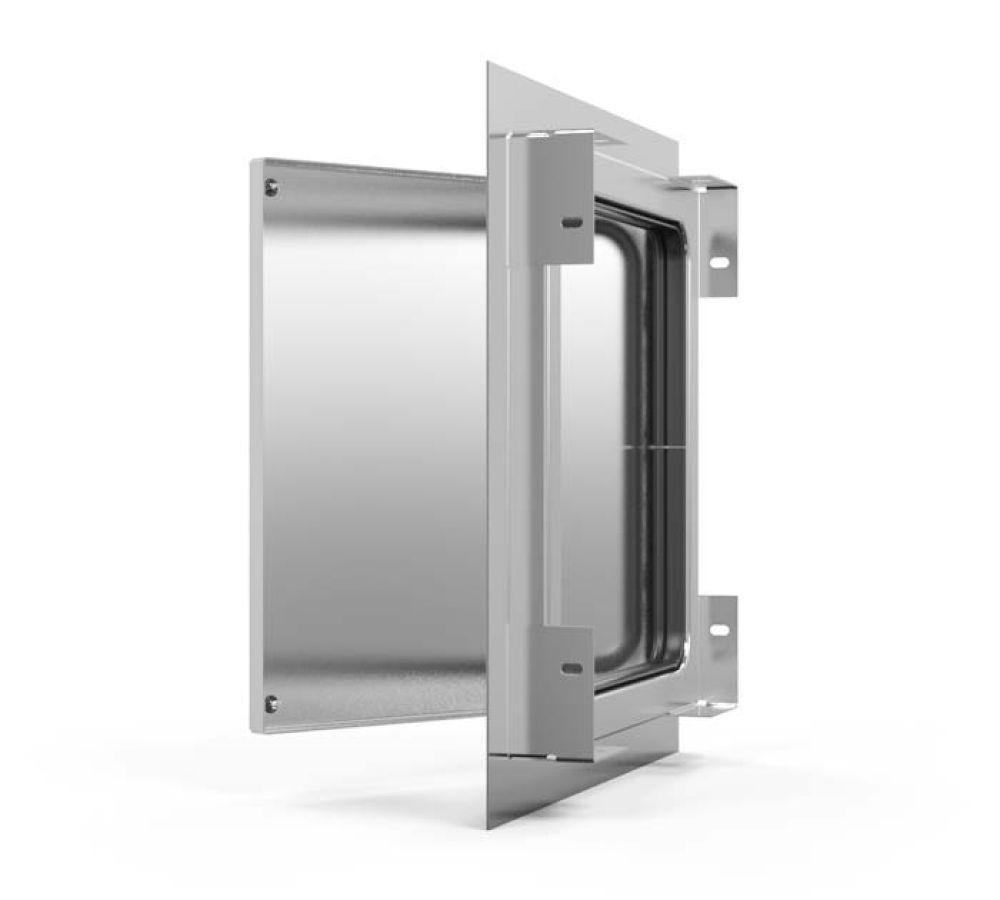

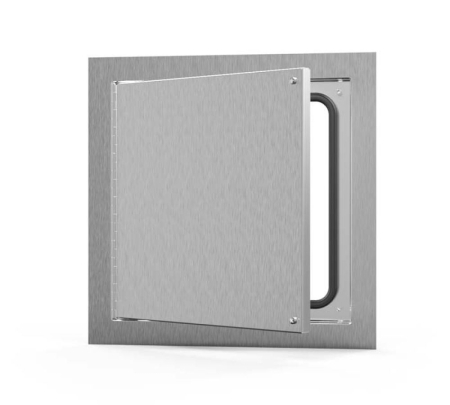

The Acudor ADWT – Steel is an Air and Watertight steel access door. The ADWT is ideal for use in laboratories, clean rooms, operating rooms, and additional appli

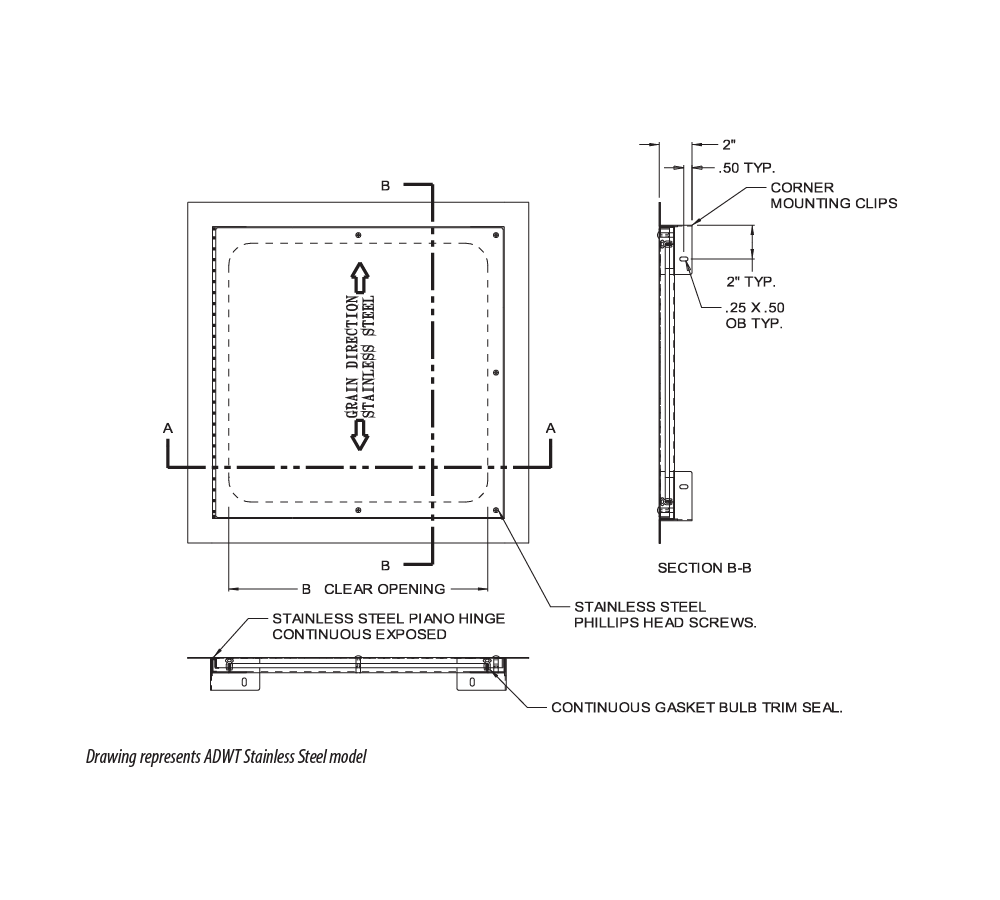

Door / Door Frame: Flush to frame with reinforced edges Stainless Steel or Steel: 16 gauge door; 16 gauge mounting frame
Hinge: Continuous exposed piano hinge. Stainless Steel model to have stainless hinge. Steel model to have steel hinge.
Gasket: Continuous Bulb Trim Seal
Standard Latch: Stainless Steel phillips head screws standard
Optional Latches/Locks: Stainless steel allen head screws, stainless steel spanner head screws, torx, cylinder lock & key
Finish: Baked White Prime Coat (Additional finish paint is recommended for superior corrosion resistance)
ASTM E283/E283M-19 “Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen”, for Air Infiltration & Exfiltration at 300Pa (6.27 psf) with result of maximum leakage ≤ 0.1 L/s/m² (0.01 cfm/ft²)
ASTM E331-00(2016) “Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference”, for Water Penetration resistance at 720Pa (15.04 psf) with result of no leakage.
Last Modified: 2025-04-23
Share
| SKU / Part # | Product Name | Inches (MM) | Price | QTY | Add to Cart |
|---|---|---|---|---|---|
| Special Order | ADWT | 8 x 8 (203 x 203) |
---
|
|
|
| Special Order | ADWT | 12 x 12 (305 X 305) |
---
|
|
|
| Special Order | ADWT | 14 x 14 (356 X 356) |
---
|
|
|
| Special Order | ADWT | 16 x 16 (406 X 406) |
---
|
|
|
| Special Order | ADWT | 18 x 18 (457 X 457) |
---
|
|
|
| Special Order | ADWT | 24 x 24 (610 X 610) |
---
|
|
|
| Special Order | ADWT | 24 x 36 (610 X 914) |
---
|
|
|
| Special Order | ADWT | 30 x 30 (762 X 762) |
---
|
|
|
| Special Order | ADWT | 30 x 48 (762 X 1220) |
---
|
|
|
| Special Order | ADWT | 36 x 36 (914 X 914) |
---
|
|
|
| Special Order | ADWT | 36 x 48 (914 X 1220) |
---
|
|
